Chamberlain C6100

The Chamberlain C6100 is a tractor produced by Chamberlain. It is equipped with a 354 ci 5.8 L engine. The listed engine power is Diesel (listed): 101 hp / 75.3 kW. Transmission: 9 forward and 3 reverse. Operating weight: 9910 lbs 4495 kg.

Engine Power

Diesel (listed): 101 hp / 75.3 kW

Fuel & Capacities

28.2 gal 106.7 L

Transmission

9 forward and 3 reverse

Operating Weight

9910 lbs 4495 kg

Overview

	1970 - 1976 Countryman SeriesStandard-tread tractor Countryman Series Standard-tread tractor

Production
Manufacturer	Chamberlain
Standard-tread tractor
Built in Welshpool, Australia

Chamberlain C6100 Engine
Perkins 5.8L 6-cyl diesel
Fuel tank	28.2 gal 106.7 L
Engine details ...

Chamberlain C6100 Transmission
9-speed gear
Transmission details ...

Chamberlain C6100 Power
Engine	101 hp 75.3 kW
Drawbar (claimed)	81 hp 60.4 kW
PTO (claimed)	91 hp 67.9 kW

Mechanical
Two-wheel drive
Steering	manual
	power optional
Open operator station.

Hydraulics
Pressure	1900 psi 131.0 bar
Pump flow	14.17 gpm 53.6 lpm

Power Take-off (PTO)
Rear PTO	indepndent
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	86.5 inches 219 cm
Weight	9910 lbs 4495 kg
Front tire	11.00-16
Rear tire	23.1-26
Full dimensions and tires ...

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins 6.354
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	354 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	101 hp 75.3 kW
Compression	16:1
Rated RPM	2200
Torque	265 lb-ft 359.3 Nm
Torque RPM	1400

Transmission

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse

Dimensions

Chamberlain C6100 Tires
Ag front	11.00-16
Ag rear	23.1-26

Dimensions
Wheelbase	86.5 inches 219 cm
Length	152 inches 386 cm
Width	96 inches 243 cm
Height	75.9 inches 192 cm
Weight	9910 lbs 4495 kg

Photos

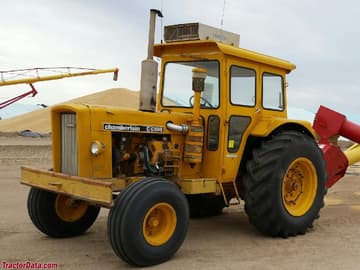

Chamberlain C6100

Recommended Implements & Sizing Guide

Engineering recommendations for Chamberlain C6100 based on its 101 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Chamberlain C6100.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (28.2 gal / 106.7 L).

Estimated 75% Load Fuel Burn~5.3 gal/hr (19.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
