Chamberlain 4280

The Chamberlain 4280 is a tractor produced by Chamberlain. It is equipped with a 359 ci 5.9 L engine. The rated power output is 106 hp 79.0 kW. Transmission: Hi-Lo. Operating weight: 12478 lbs 5660 kg.

Overview

	1975 - 1985 80 Series
1975 - 1985
80 Series

Production
Manufacturer	Chamberlain (a part of John Deere)
Built in Welshpool, Australia
Total built	2,186

Variants
4280A	built 1975-1983
4280B	built 1983-1985

Chamberlain 4280 Engine
John Deere 5.9L 6-cyl diesel
Fuel tank	72.1 gal 272.9 L
Engine details ...

Chamberlain 4280 Transmission
12-speed two-speed power shift
Transmission details ...

Chamberlain 4280 Power
Engine (gross)	111 hp 82.8 kW
Engine (net)	106 hp 79.0 kW
PTO (claimed)	98 hp 73.1 kW

Mechanical
Two-wheel drive
Power steering
Sedan cab with heat and air-conditioning.

Hydraulics
Type	open center
Valves	2
Pump flow	13.8 gpm 52.2 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	live

Dimensions & Tires
Weight	12478 lbs 5660 kg
Front tire	11.00-16
Rear tire	23.1-34
Full dimensions and tires ...

References
John Deere Tractors Worldwide by Don Macmillan
Technical Annual published in 1977, by Power Farming
Technical Annual published in 1981, by Power Farming
Technical Annual published in 1983, by Power Farming

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer	John Deere 6-359
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	359 ci 5.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power (net)	106 hp 79.0 kW
Power (gross)	111 hp 82.8 kW
Compression	16.8:1
Rated RPM	2500
Torque	260 lb-ft 352.6 Nm
Torque RPM	1350
Starter type	electric

Transmission

Transmission — Hi-Lo

Transmission	Hi-Lo
Type	two-speed power shift
Gears	12 forward and 4 reverse

Dimensions

Chamberlain 4280 Tires
Ag front	11.00-16
Ag rear	23.1-34

Dimensions
Length	177.6 inches 451 cm
Width	88.6 inches 225 cm
Height (cab)	108.1 inches 274 cm
Weight	12478 lbs 5660 kg

Photos

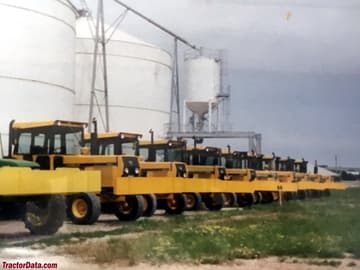

Chamberlain 4280 tractors for shunting grain railcars.
