Claas Ares 836
The Claas Ares 836 is a tractor produced by Claas. It is equipped with a 414.2 ci 6.8 L engine. The rated power output is 205 hp 152.9 kW. Transmission: 32 forward and reverse. Operating weight: 14,884 lbs 6751 kg.
Engine Power
205 hp
152.9 kW
Fuel & Capacities
79.3 gal
300.2 L
Transmission
32 forward and reverse
Operating Weight
14,884 lbs
6751 kg
Claas Ares 836 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2003
Ares Series |
|---|---|
2002 - 2003 | |
Ares Series | |
Production | |
|---|---|
Manufacturer | Claas |
Claas 836 Engine | |
|---|---|
6.8L 6-cyl | |
Fuel tank | 79.3 gal
300.2 L |
Engine details ...  | |
Claas 836 Transmission | |
|---|---|
32-speed | |
Transmission details ...  |
Claas 836 Power | |
|---|---|
Engine | 205 hp
152.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Total flow | 29.1 gpm
110.1 lpm |
Tractor hitch | |
|---|---|
Rear lift | 24,983 lbs
11332 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/750/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 113.4 inches
288 cm |
Weight | 14,884 lbs
6751 kg |
Front tire | 16.9R30 |
Rear tire | 20.8R42 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 414.2 ci / 6.8 L
Manufacturer | DPS 6068 HRT |
Configuration | intercooled turbocharged, 6-cylinder |
Displacement | 414.2 ci
6.8 L |
Bore/Stroke | 4.193x5.00 inches
107 x 127 mm |
Power | 205 hp
152.9 kW |
Rated RPM | 2000 |
Torque | 604.8 lb-ft
820.1 Nm |
Torque RPM | 1650 |
Starter type | electric |
Transmission
Transmission — 32 forward and reverse
Gears | 32 forward and reverse |
Dimensions
Claas 836 Tires | |
|---|---|
Ag front | 16.9R30 |
Ag rear | 20.8R42 |
Dimensions | |
|---|---|
Wheelbase | 113.4 inches
288 cm |
Length | 181.9 inches
462 cm |
Height | 121.7 inches
309 cm |
Weight | 14,884 lbs
6751 kg |
Photos

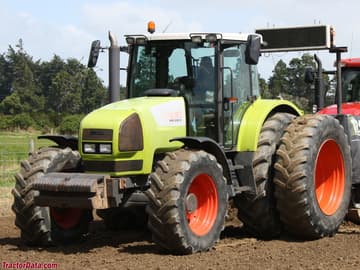

Claas Ares 836
Claas Ares 836 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Claas Ares 836.
Converted Equivalents:
Horsepower (HP)205 hp
Kilowatts (kW)152.9 kW
Metric Horsepower (PS / CV)207.8 PS
