Claas Arion 410
The Claas Arion 410 is a tractor produced by Claas. It is equipped with a 276.4 ci 4.5 L engine. The listed engine power is Diesel (net): 90 hp / 67.1 kW. Transmission: Quadrishift. Operating weight: 10580 lbs 4799 kg.
Engine Power
Diesel (net): 90 hp / 67.1 kW
Fuel & Capacities
46.2 gal
174.9 L
Transmission
Quadrishift
Operating Weight
10580 lbs
4799 kg
Overview
 | 2009 - 2024
Model year 2009-20142014-2024
Arion SeriesRow-Crop tractor
Arion Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Claas |
Row-Crop tractor | |
Variants | |
|---|---|
410 CIS | Claas information system |
Claas Arion 410 Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Fuel tank | 46.2 gal
174.9 L |
Engine details ...  | |
Claas Arion 410 Transmission | |
|---|---|
16-speed power shift | |
Transmission details ...  |
Claas Arion 410 Power | |
|---|---|
Engine (net) | 90 hp
67.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic |
Power steering | |
Wet disc brakes | |
Cab standard with available air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2828 psi
195.0 bar |
Rear valves | 2 to 4 |
Pump flow | 15.85 gpm
60.0 lpm |
25.9 gpm*98L hydraulic flow standard on CIS model, optional on others
98.0 lpm | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 540/1000 |
540/540E/1000/1000E | |
Dimensions & Tires | |
|---|---|
Wheelbase | 100.9 inches
256 cm |
Weight | 10580 lbs
4799 kg |
Front tire | 13.4R24 |
Rear tire | 16.9R34 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 276.4 ci / 4.5 L Diesel
Manufacturer | John Deere DPS 4045 |
Configuration | turbocharged intercooled diesel, 4-cylinder, liquid-cooled |
Displacement | 276.4 ci
4.5 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Rated Power (net) | 90 hp
67.1 kW |
Maximum Power (net) | 95 hp
70.8 kW |
Rated RPM | 2200 |
Torque | 309.8 lb-ft
420.1 Nm |
Torque RPM | 1650 |
Starter type | electric |
Oil change | 500 h |
Transmission
Transmission — Quadrishift
Transmission | Quadrishift |
Type | power shift |
Gears | 16 forward and reverse |
Four power shift gears in four power shift ranges. Power shuttle shifting. Quadractiv, optional on CIS models, allows for automated gear shifting. | |
Dimensions
Claas Arion 410 Tires | |
|---|---|
Standard tires (ag) | Front: 13.4R24. Rear: 16.9R34 |
Dimensions | |
|---|---|
Wheelbase | 100.9 inches
256 cm |
Length | 174.9 inches
444 cm |
Height | 107.7 inches
273 cm |
Weight | 10580 lbs
4799 kg |
Max weight | 19400 lbs
8799 kg |
Clearance (front axle) | 17.4 inches
44 cm |
Clearance (rear axle) | 16.9 inches
42 cm |
Attachments
Attachment overview | |
|---|---|
Claas FL 80 loader | |
Claas FL 100 loader | |
Claas FL 120 loader |
Photos

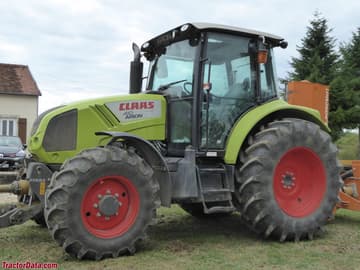

Claas Arion 410
Recommended Implements & Sizing Guide
Engineering recommendations for Claas Arion 410 based on its 90 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Claas Arion 410.
Estimated Continuous Field Runtime: 9.9 hrs
Approximately 9.9 hours of continuous field operation at ~75% rated power on a full tank (46.2 gal / 174.9 L).
Estimated 75% Load Fuel Burn~4.7 gal/hr (17.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Claas Arion 410 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Claas Arion 410.
Converted Equivalents:
Horsepower (HP)90 hp
Kilowatts (kW)67.1 kW
Metric Horsepower (PS / CV)91.2 PS
Direct Competitor Comparison
Compare Claas Arion 410 against same-era industry alternatives in the same horsepower class.
Current Model
Claas
Claas Arion 410
Engine Power:Diesel (net): 90 hp / 67.1 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 884
Engine Power:81
Production Years:1979 - 1984
