cletrac ag 6
 | 1944 - 1957
Agricultural Crawler tractor | 1944 - 1957 | Agricultural Crawler tractor |
|---|---|---|---|
1944 - 1957 | |||
Agricultural Crawler tractor | |||
1944 - 1957 | |
|---|---|
Agricultural Crawler tractor |
Engine Detail | |
|---|---|
Continental F226 | |
gasoline | |
6-cylinder | |
liquid-cooled | |
Displacement | 226 ci
3.7 L |
Bore/Stroke | 3.3125x4.375 inches
84 x 111 mm |
Fuel system | Tillotson 1.125" carburetor |
Air cleaner | oil bath |
Rated RPM | 1530 |
Firing order | 1-5-3-6-2-4 |
Oil capacity | 8 qts
7.6 L |
Coolant capacity | 20 qts
18.9 L |
Sparkplug gap | 0.022 inches
0.559 mm |

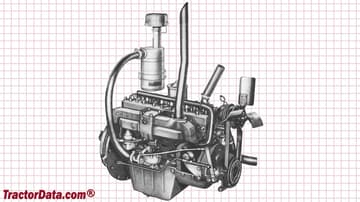

Cletrac AG-6 Engine | |
|---|---|
 |
