Cletrac ED2
The Cletrac ED2 is a tractor produced by Cletrac. It is equipped with a 196 ci 3.2 L engine. Transmission: 3 forward and 1 reverse. Drive type: crawler. Operating weight: 5800 lbs 2630 kg.
Drive & Traction
crawler
Fuel & Capacities
Diesel
Transmission
3 forward and 1 reverse
Operating Weight
5800 lbs
2630 kg
Cletrac ED2 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1937 - 1940
Agricultural Crawler tractor |
|---|---|
1937 - 1940 | |
Agricultural Crawler tractor | |
Production | |
|---|---|
Manufacturer | Cletrac |
Agricultural Crawler tractor | |
Built in Cleveland, Ohio, USA | |
Variants | |
|---|---|
E | Hercules gas engine |
ED | Hercules diesel engine |
ED2 | Buda diesel engine |
EHD2 | high-clearance |
Cletrac ED2 Engine | |
|---|---|
Buda 3.2L 4-cyl diesel | |
Engine details ...  |
Cletrac ED2 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Cletrac ED2 Power | |
|---|---|
Drawbar (claimed) | 25 hp
18.6 kW |
Belt (claimed) | 33 hp
24.6 kW |
Plows | 2-3 (14-inch) |
Mechanical | |
|---|---|
Drive | crawler |
Open operator station. | |
Dimensions & Tracks | |
|---|---|
Weight | 5800 lbs
2630 kg |
8-inch tracks | |
Full dimensions and tracks ...  | |
Engine
Engine Detail — 196 ci / 3.2 L Diesel
Manufacturer | Buda 4DT196 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 196 ci
3.2 L |
Bore/Stroke | 3.625x4.75 inches
92 x 121 mm |
Starter type | electric |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Cletrac ED2 Tracks | |
|---|---|
Width | 8 inches
20 cm |
Dimensions | |
|---|---|
Length | 105.5 inches
267 cm |
ED2-38 Width | 47.4 inches
120 cm |
ED2-62 Width | 78.5 inches
199 cm |
Height (hood) | 55.5 inches
140 cm |
Weight | 5800 lbs
2630 kg |
Gauge | 38 inches
96 cm |
Gauge | 42 inches
106 cm |
Gauge | 62 inches
157 cm |
Photos

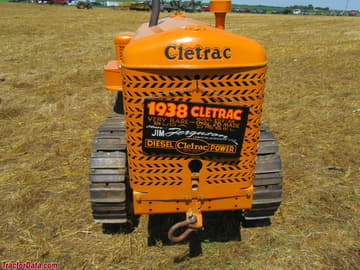

Cletrac ED2-38.
Cletrac ED2-38.
Cletrac ED2-38.
Cletrac ED2-38.
Cletrac ED2-38.
Cletrac ED2-38 operator station and controls.
Cletrac ED2 with dozer blade.
Cletrac ED2 with dozer blade.
Cletrac ED2 with dozer blade.
