Cletrac F 9-16
The Cletrac F 9-16 is a tractor produced by Cletrac. It is equipped with a 149.3 ci 2.4 L engine. Transmission: 1 forward and reverse. Drive type: crawler. Operating weight: 1865 lbs 845 kg.
Drive & Traction
crawler
Fuel & Capacities
Kerosene
Transmission
1 forward and reverse
Operating Weight
1865 lbs
845 kg
Overview
 | 1920 - 1922
Agricultural Crawler tractor |
|---|
Production | |
|---|---|
Manufacturer | Cletrac |
Agricultural Crawler tractor | |
Built in Cleveland, Ohio, USA | |
Original price was $595 in 1922 | |
Cletrac F 9-16 Engine | |
|---|---|
Cletrac 2.4L 4-cyl kerosene | |
Engine details ...  |
Cletrac F 9-16 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Cletrac F 9-16 Power | |
|---|---|
Drawbar (claimed) | 9 hp
6.7 kW |
Belt (claimed) | 16 hp
11.9 kW |
Plows | 2 (12-inch) |
Drawbar (tested) | 13.145 hp
9.8 kW |
Belt (tested) | 19.61 hp
14.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Drive | crawler |
Open operator station. | |
Dimensions & Tracks | |
|---|---|
Weight | 1865 lbs
845 kg |
5.5-inch tracks | |
Full dimensions and tracks ...  | |
Belt Pulley | |
|---|---|
Diameter | 7.5 inches
19 cm |
Width | 6 inches
15 cm |
RPM | 1600 |
Speed | 3000 ft/min
914.40 meters/min |
Engine
Engine Detail — 149.3 ci / 2.4 L Kerosene
Manufacturer | Cletrac |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 149.3 ci
2.4 L |
Bore/Stroke | 3.25x4.50 inches
83 x 114 mm |
Rated RPM | 1600 |
Transmission
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
Dimensions
Cletrac F 9-16 Tracks | |
|---|---|
Width | 5.5 inches
13 cm |
Dimensions | |
|---|---|
Length | 83 inches
210 cm |
Width | 43 inches
109 cm |
Height | 50 inches
127 cm |
Weight | 1865 lbs
845 kg |
Tests
Nebraska Tractor Test 85 | |
|---|---|
Kerosene crawler
April 14 - 20, 1922
Link: Nebraska Tractor Test 85 file | |
Belt power (max) | 19.61 hp
14.6 kW |
Drawbar performance | |
Max power | 13.145 hp
9.8 kW |
Gear 1 used for power test. | |
Max pull | 1780 lbs
807 kg |
Gear 1 used for pull test. | |
Photos

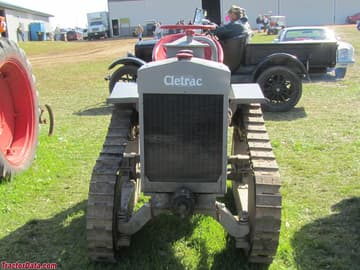

Cletrac F 9-16
Cletrac F 9-16
Cletrac F 9-16
Cletrac F operator station and controls.
