cletrac hg
 | 1939 - 1951
Agricultural Crawler tractor | 1939 - 1951 | Agricultural Crawler tractor |
|---|---|---|---|
1939 - 1951 | |||
Agricultural Crawler tractor | |||
1939 - 1951 | |
|---|---|
Agricultural Crawler tractor |
Engine options | |
|---|---|
Hercules 2.2L 4-cyl gasoline | |
Hercules 1.9L 4-cyl gasoline | |
Hercules 2.0L 4-cyl gasoline |
Engine Detail | |
|---|---|
Hercules IXB3 | |
gasoline | |
4-cylinder | |
liquid-cooled vertical L-head | |
Final engine, used from 1950 on. | |
Displacement | 133 ci
2.2 L |
Bore/Stroke | 3.25x4.00 inches
83 x 102 mm |
Air cleaner | Vortox |
Compression | 6.67:1 |
Rated RPM | 1700 |
Starter volts | 6 |
Coolant capacity | 12 qts (original)
11.4 L |
| 11 qts (late)
10.4 L |
Engine Detail | |
|---|---|
Hercules IXA3 | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Original engine, used from 1939 to late 1940 | |
Displacement | 113.1 ci
1.9 L |
Bore/Stroke | 3.00x4.00 inches
76 x 102 mm |
Rated RPM | 1400 |
Engine Detail | |
|---|---|
Hercules IXK | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Second engine, used from late 1940 to 1950. | |
Displacement | 122.3 ci
2.0 L |
Bore/Stroke | 3.125x4.00 inches
79 x 102 mm |
Rated RPM | 1700 |
Coolant capacity | 11 qts
10.4 L |

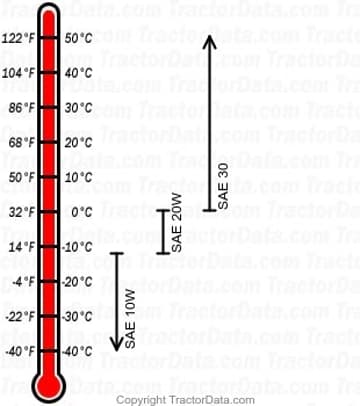

Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |

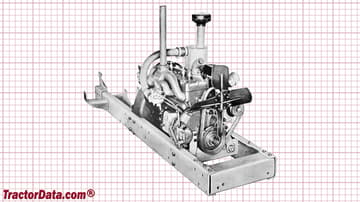

Cletrac HG Engine | |
|---|---|
 |
