CO-OP E2
The CO-OP E2 is a tractor produced by Co Op. It is equipped with a 140 ci 2.3 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 2,820 lbs 1279 kg.
Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
2,820 lbs
1279 kg
Overview
 | 1952 - 1953
Row-Crop tractor |
|---|
Note: the CO-OP model E2 is the same as the Cockshutt 20. The following data is from the 20 listing. |
|---|
Production | |
|---|---|
Manufacturer | CO-OP |
Row-Crop tractor | |
Built in Brantford, Ontario, Canada | |
Total built | 4,000 |
Original price | $2,300 (1953) |
CO-OP E2 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
CO-OP E2 Power | |
|---|---|
PTO (claimed) | 30 hp
22.4 kW |
Drawbar (tested) | 25.47 hp
19.0 kW |
Belt (tested) | 28.94 hp
21.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Independent mechanical contracting band brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 2,820 lbs
1279 kg |
Front tire | 5.00-15 |
Rear tire | 11-24 |
Full dimensions and tires ...  | |
Engine
Note: the CO-OP model E2 is the same as the Cockshutt 20. The following data is from the 20 listing. |
|---|
Engine options | |
|---|---|
Continental 2.0L 4-cyl gasoline | |
Continental 2.3L 4-cyl gasoline |
Engine Detail — 124 ci / 2.0 L Gasoline
Manufacturer | Continental |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
The Continental 124 was the original engine used on the Cockshutt 20, installed on the first 863 tractors (serial numbers 101 to 963). It was replaced with a larger Continental 140. | |
Displacement | 124 ci
2.0 L |
Air cleaner | oil bath |
Starter volts | 6 |
Engine Detail — 140 ci / 2.3 L Gasoline
Manufacturer | Continental |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
The Continental 140 was the second engine used on the Cockshutt model 20. The 140 was used in the middle of the 1952 production year, starting on tractor serial number 963. | |
Displacement | 140 ci
2.3 L |
Bore/Stroke | 3.1875x4.375 inches
81 x 111 mm |
Air cleaner | oil bath |
Compression | 6.75:1 |
Rated RPM | 1800 |
Transmission
Note: the CO-OP model E2 is the same as the Cockshutt 20. The following data is from the 20 listing. |
|---|
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
 | |
Dimensions
Note: the CO-OP model E2 is the same as the Cockshutt 20. The following data is from the 20 listing. |
|---|
CO-OP E2 Tires | |
|---|---|
Ag front | 5.00-15 |
Ag rear | 11-24 |
Dimensions | |
|---|---|
Operating weight | 2,820 lbs
1279 kg |
Ballasted weight | 4,761 lbs
2159 kg |
Tests
Note: the CO-OP model E2 is the same as the Cockshutt 20. The following data is from the 20 listing. |
|---|
Nebraska Tractor Test 474 | |
|---|---|
140 gasoline 4-speed 2WD
June 16 - 24, 1952
Link: Nebraska Tractor Test 474 file | |
Belt power (max) | 28.94 hp
21.6 kW |
Belt fuel use (max) | 2.9 gal/hour
11.0 l/hour |
Drawbar performance | |
Max power | 25.47 hp
19.0 kW |
Gear 3 used for power test. | |
Max pull | 3,266 lbs
1481 kg |
Gear 1 used for pull test. | |
Photos

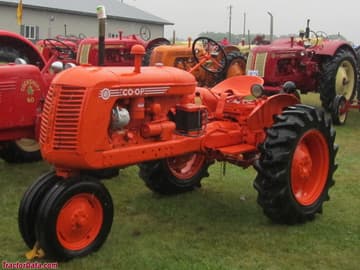

CO-OP E2 with tricycle front end.
CO-OP E2 with wide front end.
CO-OP E2 with wide front end.
