CO-OP E4
The CO-OP E4 is a tractor produced by Co Op. It is equipped with a 230 ci 3.8 L engine. Transmission: 6 forward and 2 reverse. Operating weight: 5305 lbs 2406 kg.
Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse
Operating Weight
5305 lbs
2406 kg
Overview
 | 1949 - 1958
Row-Crop tractor |
|---|
Note: the CO-OP model E4 is the same as the Cockshutt 40. The following data is from the 40 listing. |
|---|
Production | |
|---|---|
Manufacturer | CO-OP |
Row-Crop tractor | |
Built in Brantford, Ontario, Canada | |
Original price was $3,600 in 1957 | |
CO-OP E4 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
CO-OP E4 Power | |
|---|---|
PTO (claimed) | 43 hp
32.1 kW |
Drawbar (tested) | 37.85 hp
28.2 kW |
Belt (tested) | 43.30 hp
32.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 86.7 inches
220 cm |
Weight | 5305 lbs
2406 kg |
Full dimensions and tires ...  | |
Engine
Note: the CO-OP model E4 is the same as the Cockshutt 40. The following data is from the 40 listing. |
|---|
Engine options | |
|---|---|
Buda 3.8L 6-cyl gasoline | |
Buda 3.8L 6-cyl diesel |
Engine Detail — 230 ci / 3.8 L Gasoline
Manufacturer | Buda 6B230 |
Fuel Type | Gasoline |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.4375x4.125 inches
87 x 105 mm |
Air cleaner | oil bath |
Compression | 6.2:1 |
Rated RPM | 1650 |
Starter volts | 6 |
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | Buda 6BD230 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.4375x4.125 inches
87 x 105 mm |
Air cleaner | oil bath |
Transmission
Note: the CO-OP model E4 is the same as the Cockshutt 40. The following data is from the 40 listing. |
|---|
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Clutch | dry disc |
 | |
Dimensions
Note: the CO-OP model E4 is the same as the Cockshutt 40. The following data is from the 40 listing. |
|---|
CO-OP E4 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 86.7 inches
220 cm |
Operating weight | 5305 lbs
2406 kg |
Ballasted weight | 8371 lbs
3797 kg |
Front tread | 53.4/59 inches
135/149 cm |
Rear tread | 61.75 to 78.75 inches
156 to 200 cm |
Tests
Note: the CO-OP model E4 is the same as the Cockshutt 40. The following data is from the 40 listing. |
|---|
Nebraska Tractor Test 442 | |
|---|---|
Gasoline 6-speed 2WD
June 12 - 17, 1950
Link: Nebraska Tractor Test 442 file | |
Belt power (max) | 43.30 hp
32.3 kW |
Belt fuel use (max) | 4.5 gal/hour
17.0 l/hour |
Drawbar performance | |
Max power | 37.85 hp
28.2 kW |
Gear 4 used for power test. | |
Max pull | 5,538 lbs
2512 kg |
Gear 1 used for pull test. | |
Photos

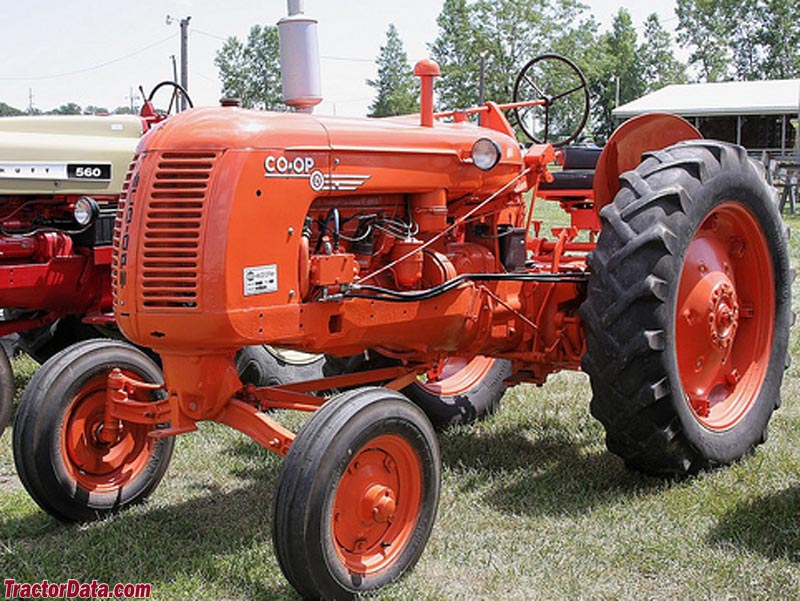

CO-OP E4, left side
CO-OP E4, right side
