Cockshutt 2150

The Cockshutt 2150 is a tractor produced by Cockshutt. It is equipped with a 478 ci 7.8 L engine. The rated power output is 131.48 hp 98.0 kW. Transmission: Hydraul-Shift. Operating weight: 12,990 lbs 5892 kg.

Overview

	1968 - 1969 Row-Crop tractor
1968 - 1969
Row-Crop tractor

Series map: 20502150131.1hp*145.6hp**Estimated engine power for comparison only.

Note: the Cockshutt model 2150 is the same as the Oliver 2150. The following data is from the 2150 listing.

Production
Manufacturer	Cockshutt (a part of White)
Row-Crop tractor
Built in Charles City, Iowa, USA
Original price	$13,800 (1969)

Cockshutt 2150 Engine
Oliver-Hercules 7.8L 6-cyl diesel
Fuel tank	27.5 gal 104.1 L
	78 gal*Capacity of optional fender-mounted fuel tanks. 295.2 L
Engine details ...

Cockshutt 2150 Power
PTO (claimed)	131 hp 97.7 kW
Drawbar (tested)	109.51 hp 81.7 kW
PTO (tested)	131.48 hp 98.0 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	planetary
Power steering
Independent dry disc brakes
Open operator station. Cab optional with air-conditioning.

Hydraulics
Type	open center
Pressure	2050 psi 141.3 bar
Valves	2 to 4
Pump flow	9 gpm 34.1 lpm

Tractor hitch
Rear Type	III
Control	position and draft control
Rear lift (at 24"/610mm)	6000 lbs 2721 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
	540/1000

Dimensions & Tires
Wheelbase	97.7 inches 248 cm
Weight	12,990 lbs 5892 kg
Front tire	11.00-16
Rear tire	18.4-38
Full dimensions and tires ...

Engine

Series map: 20502150131.1hp*145.6hp**Estimated engine power for comparison only.

Note: the Cockshutt model 2150 is the same as the Oliver 2150. The following data is from the 2150 listing.

Engine Detail — 478 ci / 7.8 L Diesel

Manufacturer	Oliver-Hercules
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	478 ci 7.8 L
Bore/Stroke	4.5625x4.875 inches 116 x 124 mm
Air cleaner	dual dry type
Compression	18.0:1
Rated RPM	2400
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	19 qts 18.0 L
Coolant capacity	28 qts 26.5 L

Transmission

Series map: 20502150131.1hp*145.6hp**Estimated engine power for comparison only.

Note: the Cockshutt model 2150 is the same as the Oliver 2150. The following data is from the 2150 listing.

Transmission options
6-speed unsynchronized gear
18-speed partial powershift

Transmission — 6 forward and 2 reverse unsynchronized gear

Type	unsynchronized gear
Gears	6 forward and 2 reverse
Clutch	355.6mm cerametallic disc
With 18.4-38 rear tires.

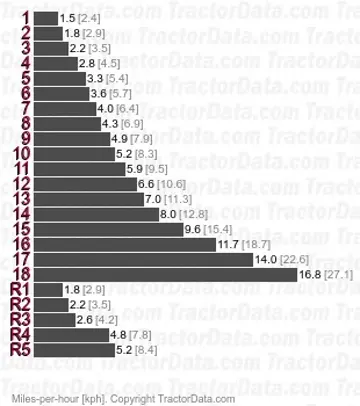

Transmission — Hydraul-Shift

Transmission	Hydraul-Shift
Type	partial powershift
Gears	18 forward and 6 reverse
Clutch	355.6mm cerametallic disc
Oliver Hydraul-Shift provides a clutchless, on-the-move shift to an over- and under-drive for each of six forward gears.

Dimensions

Series map: 20502150131.1hp*145.6hp**Estimated engine power for comparison only.

Note: the Cockshutt model 2150 is the same as the Oliver 2150. The following data is from the 2150 listing.

Cockshutt 2150 Tires
Ag front	11.00-16
Ag rear	18.4-38
	23.1-34
	24.5-32

Dimensions
Wheelbase	97.7 inches 248 cm
Length	162.3 inches 412 cm
Height (steering wheel)	85.5 inches 217 cm
Operating weight	12,990 lbs 5892 kg
Ballasted weight	21,125 lbs 9582 kg
Ground clearance	18.9 inches 48 cm
2WD Front tread	60 to 80 inches 152 to 203 cm
4WD Front tread	66/70.75/80 inches 167/179/203 cm
2WD Rear tread	61 to 91 inches 154 to 231 cm
4WD Rear tread	61.5 to 111.5 inches 156 to 283 cm

Tests

Series map: 20502150131.1hp*145.6hp**Estimated engine power for comparison only.

Note: the Cockshutt model 2150 is the same as the Oliver 2150. The following data is from the 2150 listing.

Nebraska Tractor Test 986
Diesel 18-speed 2WD September 27 - October 7, 1968 Link: Nebraska Tractor Test 986 file
PTO performance
Power at rated engine speed	131.48 hp 98.0 kW
Fuel use	8.6 gal/hour 32.6 l/hour
Drawbar performance
Max power	109.51 hp 81.7 kW
Gear 4-under used for power test.
Max pull	16,509 lbs 7488 kg
Gear 1-Over used for pull test.

Photos

Cockshutt 2150
