craftsman lawn tractors 917 25005
 | 1993
Garden tractorAYP built | 1993 | Garden tractor | AYP built |
|---|---|---|---|---|
1993 | ||||
Garden tractor | ||||
AYP built | ||||
1993 | |
|---|---|
Garden tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler M20QS | |
gasoline | |
2-cylinder | |
air-cooled horizontal-shaft V-Twin | |
Displacement | 770 cc
46.98 ci |
Bore/Stroke | 3.12x3.06 inches
79 x 78 mm |
Power | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RV15YC |
Sparkplug gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.005 inches
0.127 mm |
Exhaust valve clearance | 0.017 inches
0.432 mm |

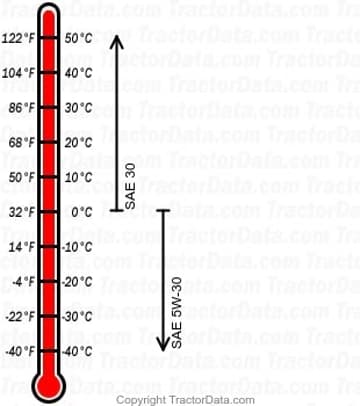

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.8 qts
1.7 L |
