Craftsman 917.25091

The Craftsman 917.25091 is a tractor produced by Craftsman Lawn Tractors. The listed engine power is Gasoline (listed): 18 hp / 13.4 kW. Transmission: 6 forward and 2 reverse.

Engine Power

Gasoline (listed): 18 hp / 13.4 kW

Fuel & Capacities

Gasoline

Transmission

6 forward and 2 reverse

Overview

	1992 Garden tractor

Production
Manufacturer	Craftsman (a part of Sears)
Garden tractor

Craftsman 917.25091 Engine
18HP gasoline
Engine details ...

Craftsman 917.25091 Transmission
6-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Dimensions & Tires
Front tire	16x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — Gasoline

Fuel Type	Gasoline
Configuration	air-cooled horizontal-shaft opposed-twin
Power	18 hp 13.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 6 forward and 2 reverse belt-driven gear

Type	belt-driven gear
Gears	6 forward and 2 reverse

Dimensions

Craftsman 917.25091 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions

Attachments

42" Mower deck
Type	mid-mount Craftsman
	3-blade
Cutting width	42 inches 106 cm

Photos

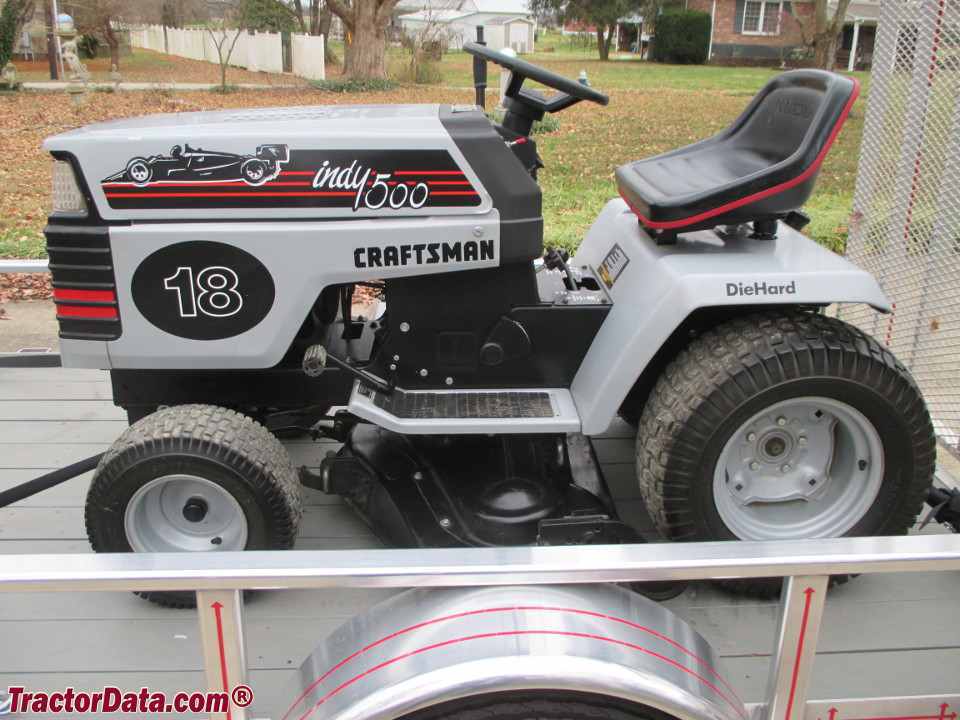

Indy 500 edition Craftsman 917.25091, left side.

Indy 500 edition Craftsman 917.25091, right side.

Recommended Implements & Sizing Guide

Engineering recommendations for Craftsman Lawn Tractors Craftsman 917.25091 based on its 18 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Craftsman Lawn Tractors Craftsman 917.25091.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Craftsman Lawn Tractors Craftsman 917.25091 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.25091.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)18 hp

Kilowatts (kW)13.4 kW

Metric Horsepower (PS / CV)18.2 PS

Direct Competitor Comparison

Compare Craftsman 917.25091 against same-era industry alternatives in the same horsepower class.

Current Model

Craftsman Lawn Tractors
