Massey Ferguson 1120

The Massey Ferguson 1120 is a tractor produced by Massey Ferguson. It is equipped with a 52 ci 0.9 L engine. The rated power output is 15.5 hp 11.6 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1272 to 1360 pounds.

Overview

	1993 - 1996 Compact Utility tractorIseki built
1993 - 1996
Compact Utility tractor
Iseki built

1993 - 1996
Compact Utility tractor
Iseki built

Production
Distributor	Massey Ferguson
Manufacturer	Iseki
Compact Utility tractor
Built in Japan
Original price was $10,000 in 1996

Massey Ferguson 1120 Engine
Iseki 0.9L 3-cyl diesel
Fuel tank	3.2 gal 12.1 L
Engine details ...

Massey Ferguson 1120 Power
Engine (gross)	16.6 hp 12.4 kW
Engine (net)	15.5 hp 11.6 kW
Gear PTO (claimed)	13.5 hp 10.1 kW
Hydro PTO (claimed)	13 hp 9.7 kW

Mechanical
Four-wheel drive
Manual steering
Mechanical drum brakes
Two-post fixed ROPS.

Hydraulics
Type	open center
Pressure	1950 psi 134.5 bar
Pump flow	3.5 gpm 13.2 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	830 lbs 376 kg

Power Take-off (PTO)
Gear Rear PTO	transmission
Hydro Rear PTO	live
Clutch	dry disc
Rear PTO Type	540 (1.375)

Dimensions & Tires
Gear Wheelbase	50.4 inches 128 cm
Hydro Wheelbase	54.1 inches 137 cm
Weight	1272 to 1360 pounds
Front tire	5.00-12
Rear tire	8-18
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	35
Battery CCA	325
Battery volts	12

References
1120-4 compact tractor published in 1994, by CaseIH
1120-4WD compact tractor published in 1994, by CaseIH

Engine

	1993 - 1996 Compact Utility tractorIseki built
1993 - 1996
Compact Utility tractor
Iseki built

1993 - 1996
Compact Utility tractor
Iseki built

Engine Detail — 52 ci / 0.9 L Diesel

Manufacturer	Iseki K3B
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	52 ci 0.9 L
Power (net)	15.5 hp 11.6 kW
Power (gross)	16.6 hp 12.4 kW
Fuel system	indirect injection
Air cleaner	dry
Pre-heating	glow plugs
Rated RPM	2600
Torque	34.7 lb-ft 47.1 Nm
Torque RPM	1800
Starter volts	12
Oil capacity	3.2 qts 3.0 L
Coolant capacity	5.1 qts 4.8 L

Transmission

	1993 - 1996 Compact Utility tractorIseki built
1993 - 1996
Compact Utility tractor
Iseki built

1993 - 1996
Compact Utility tractor
Iseki built

Transmission options
6-speed gear
hydrostatic

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Clutch	184mm dry disc
Three gears (1-3) plus reverse (R) in two ranges.

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

	1993 - 1996 Compact Utility tractorIseki built
1993 - 1996
Compact Utility tractor
Iseki built

1993 - 1996
Compact Utility tractor
Iseki built

Massey Ferguson 1120 Tires
Ag front	5.00-12
Ag rear	8-18
Lawn/turf front	20.5x8.00-10
Lawn/turf rear	29.00x12.00-15

Dimensions
Gear Wheelbase	50.4 inches 128 cm
Hydro Wheelbase	54.1 inches 137 cm
Gear Length	90.6 inches 230 cm
Hydro Length	94.3 inches 239 cm
Width	39.3 inches*Minimum width. 99 cm
Height (ROPS)	79.3 inches 201 cm
Gear Weight	1272 lbs 576 kg
Hydro Weight	1360 lbs 616 kg
Ground clearance	9.6 inches 24 cm
Front tread	31.5 inches 80 cm
Rear tread	31.4 to 35.8 inches 79 to 90 cm

Photos

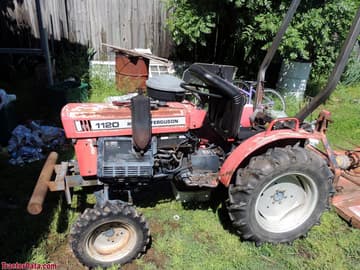

Massey Ferguson 1120, left side

Massey Ferguson 1120, right side
