Craftsman 917.25151

1996
Garden tractor
AYP built

Engine Detail
Kohler CV20S
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement	624 cc 38.1 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power	20.5 hp 15.3 kW
Starter	electric
Starter volts	12
Sparkplug	Champion RC12YC
Sparkplug gap	0.030 inches 0.762 mm

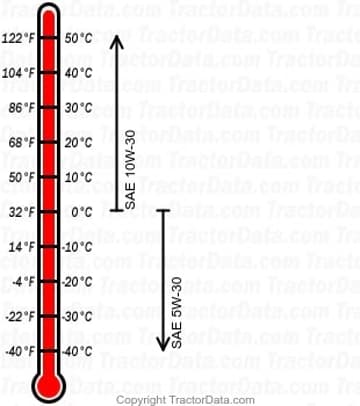

Engine Oil

Oil capacity	4.2 qts 4.0 L
