craftsman lawn tractors 917 25156
 | 1996
Garden tractorAYP built | 1996 | Garden tractor | AYP built |
|---|---|---|---|---|
1996 | ||||
Garden tractor | ||||
AYP built | ||||
1996 | |
|---|---|
Garden tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler CV22 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power | 22.5 hp
16.8 kW |
Fuel system | carburetor |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

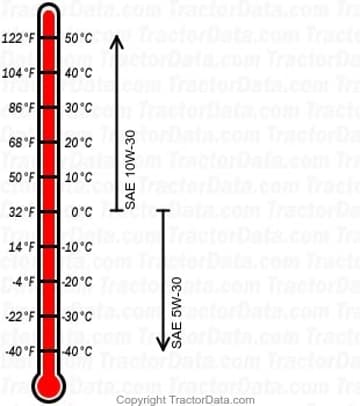

Engine Oil | |
|---|---|
 | |
Oil capacity | 4.2 qts
4.0 L |
