Craftsman 917.25372 GTV/16
The Craftsman 917.25372 GTV/16 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: Varidrive. Operating weight: 135 lbs 61 kg.
Engine Power
16 hp
11.9 kW
Fuel & Capacities
Gasoline
Transmission
Varidrive
Operating Weight
135 lbs
61 kg
Craftsman Lawn Tractors Craftsman 917.25372 GTV/16 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1981 - 1982
GTV SeriesGarden tractorRoper built |
|---|---|
1981 - 1982 | |
GTV Series | |
Garden tractor | |
Roper built | |
1981 - 1982 | |
|---|---|
GTV Series | |
Garden tractor | |
Roper built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | Roper |
Garden tractor | |
Craftsman 917.25372 Engine | |
|---|---|
16HP Briggs & Stratton 655cc 2-cyl gasoline | |
Engine details ...  |
Craftsman 917.25372 Transmission | |
|---|---|
gear with mechanical CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 1981 - 1982
GTV SeriesGarden tractorRoper built |
|---|---|
1981 - 1982 | |
GTV Series | |
Garden tractor | |
Roper built | |
1981 - 1982 | |
|---|---|
GTV Series | |
Garden tractor | |
Roper built |
Engine Detail — 655 cc / 40 ci Gasoline
Manufacturer | Briggs & Stratton 402417 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft horizontally-opposed |
Displacement | 655 cc
40 ci |
Bore/Stroke | 3.437x2.156 inches
87 x 55 mm |
Power (gross) | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |

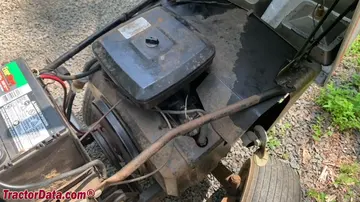

Craftsman 917.25372 Engine | |
|---|---|
 | |
Image courtesy of Mark Ridley |
Transmission
| 1981 - 1982
GTV SeriesGarden tractorRoper built |
|---|---|
1981 - 1982 | |
GTV Series | |
Garden tractor | |
Roper built | |
1981 - 1982 | |
|---|---|
GTV Series | |
Garden tractor | |
Roper built |
Transmission — Varidrive
Transmission | Varidrive |
Type | gear with mechanical CVT |
Oil capacity | 5 qts
4.7 L |
Oil type | SAE 30 |
Oil change | 500 h |
Dimensions
| 1981 - 1982
GTV SeriesGarden tractorRoper built |
|---|---|
1981 - 1982 | |
GTV Series | |
Garden tractor | |
Roper built | |
1981 - 1982 | |
|---|---|
GTV Series | |
Garden tractor | |
Roper built |
Craftsman 917.25372 Tires |
|---|
Dimensions |
|---|
Attachments
| 1981 - 1982
GTV SeriesGarden tractorRoper built |
|---|---|
1981 - 1982 | |
GTV Series | |
Garden tractor | |
Roper built | |
1981 - 1982 | |
|---|---|
GTV Series | |
Garden tractor | |
Roper built |
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
44" Mower deck | |
|---|---|
Type | mid-mount Craftsman 25364 |
3-blade with manual lift | |
Cutting width | 44 inches
111 cm |
Weight | 135 lbs
61 kg |
Cut height | 1.25 to 4.5 inch
3 to 11 cm |
Photos
Craftsman GTV/16.
Craftsman GTV/16.
Craftsman GTV/16.
Craftsman GTV/16, right side.
Craftsman GTV/16 operator station and controls.
Craftsman Lawn Tractors Craftsman 917.25372 GTV/16 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.25372 GTV/16.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
