craftsman lawn tractors 917 25481
 | 1981 - 1982
FF SeriesGarden tractorRoper built | 1981 - 1982 | FF Series | Garden tractor | Roper built |
|---|---|---|---|---|---|
1981 - 1982 | |||||
FF Series | |||||
Garden tractor | |||||
Roper built | |||||
1981 - 1982 | |
|---|---|
FF Series | |
Garden tractor | |
Roper built |
Engine Detail | |
|---|---|
Briggs & Stratton 422437 | |
gasoline | |
2-cylinder | |
air-cooled opposed-twin | |
Displacement | 693 cc
42.33 ci |
Bore/Stroke | 3.44x2.28 inches
87 x 58 mm |
Power (gross) | 18 hp
13.4 kW |
Rated RPM | 3600 |
Torque | 27.8 lb-ft
37.7 Nm |
Torque RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |

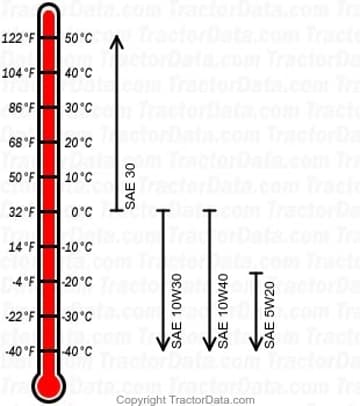

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.5 qts
1.4 L |
Oil change | 25 h |
