craftsman lawn tractors 917 25597
 | 1993
Garden tractorAYP built | 1993 | Garden tractor | AYP built |
|---|---|---|---|---|
1993 | ||||
Garden tractor | ||||
AYP built | ||||
1993 | |
|---|---|
Garden tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 422707 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft opposed twin | |
Displacement | 693 cc
42.33 ci |
Bore/Stroke | 3.44x2.28 inches
87 x 58 mm |
Power | 18 hp
13.4 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RJ-19LM |
Sparkplug gap | 0.025 inches
0.635 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 1.5 qts
1.4 L |
Oil change | 25 h |

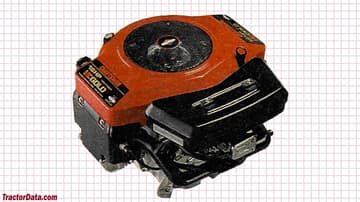

Craftsman 917.25597 Engine | |
|---|---|
 |
