craftsman lawn tractors 917 25657
![]()  | 1996
Lawn tractorAYP built  | 1996  | Lawn tractor  | AYP built  |
|---|---|---|---|---|
1996  | ||||
Lawn tractor  | ||||
AYP built  | ||||
1996  | |
|---|---|
Lawn tractor  | |
AYP built  |
Engine Detail  | |
|---|---|
Briggs & Stratton 42A707  | |
gasoline  | |
2-cylinder  | |
air-cooled vertical-shaft opposed twin  | |
Displacement  | 693 cc
42.33 ci  |
Bore/Stroke  | 3.4375x2.281 inches
87 x 58 mm  |
Power  | 19 hp
14.2 kW  |
Starter  | electric  |
Starter volts  | 12  |
Sparkplug  | Champion RJ19LM  |
Sparkplug gap  | 0.030 inches
0.762 mm  |

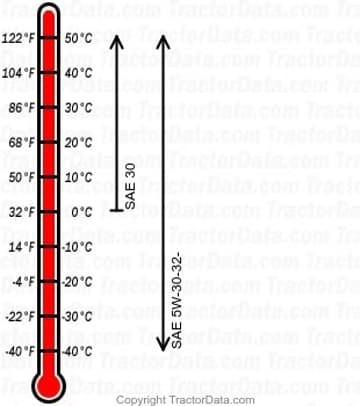

Engine Oil  | |
|---|---|
![]()  | |
Oil capacity  | 0.75 qts
0.7 L  |
Oil change  | 25 h  |
