craftsman lawn tractors 917 25661
 | 1996
Lawn tractorAYP built | 1996 | Lawn tractor | AYP built |
|---|---|---|---|---|
1996 | ||||
Lawn tractor | ||||
AYP built | ||||
1996 | |
|---|---|
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler CV15S | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 426 cc
26 ci |
Bore/Stroke | 3.55x2.64 inches
90 x 67 mm |
Power | 15.5 hp
11.6 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.040 inches
1.016 mm |

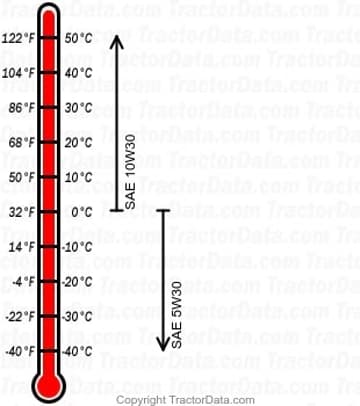

Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |
Oil change | 25 h |
