craftsman lawn tractors 917 25764
 | 1994
Lawn tractorAYP built | 1994 | Lawn tractor | AYP built |
|---|---|---|---|---|
1994 | ||||
Lawn tractor | ||||
AYP built | ||||
1994 | |
|---|---|
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 28N707 | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power (gross) | 15 hp
11.2 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RJ-19LM |
Intake valve clearance | 0.006 inches
0.152 mm |
Exhaust valve clearance | 0.010 inches
0.254 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 1.5 qts
1.4 L |
Oil change | 25 h |

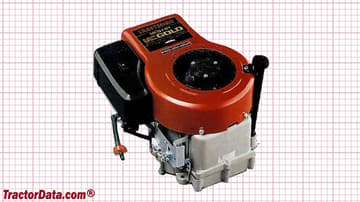

Craftsman 917.25764 Engine | |
|---|---|
 |
