craftsman lawn tractors 917 25765
 | 1994
LT4000 SeriesLawn tractorAYP built | 1994 | LT4000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
1994 | |||||
LT4000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
1994 | |
|---|---|
LT4000 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler CV15S | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 426 cc
26 ci |
Bore/Stroke | 3.55x2.64 inches
90 x 67 mm |
Power (gross) | 15.5 hp
11.6 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |

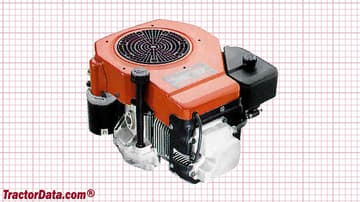

Craftsman 917.25765 Engine | |
|---|---|
 |
