Craftsman 917.25849

The Craftsman 917.25849 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 693 cc 42.33 ci engine. The listed engine power is Gasoline (listed): 18 hp / 13.4 kW. Transmission: Dana 4360-42.

Engine Power

Gasoline (listed): 18 hp / 13.4 kW

Fuel & Capacities

3.5 gal 13.2 L

Transmission

Dana 4360-42

Overview

	1992 Lawn tractorAYP built Lawn tractor AYP built

Production
Distributor	Craftsman (a part of Sears)
Manufacturer	AYP
Lawn tractor
Original price was $1,700 in 1992

Craftsman 917.25849 Engine
18HP Briggs & Stratton 693cc 2-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Craftsman 917.25849 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual idler pulley

Dimensions & Tires
Front tire	15x6.00-6
Rear tire	20x10-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	3 (headlights)
	5 (battery)
Battery volts	12

Engine

Engine Detail — 693 cc / 42.33 ci Gasoline

Manufacturer	Briggs & Stratton 422707
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft opposed-twin
Displacement	693 cc 42.33 ci
Bore/Stroke	3.44x2.28 inches 87 x 58 mm
Power	18 hp 13.4 kW
Starter	electric
Starter volts	12
Sparkplug	Champion RJ-19LM
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	1.5 qts 1.4 L
Oil change	25 h

Transmission

Transmission — Dana 4360-42

Transmission	Dana 4360-42
Type	belt-driven gear
Gears	5 forward and 1 reverse

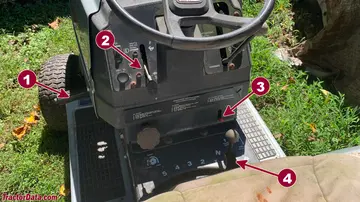

917.25849 Transmission Controls

1	Clutch/brake pedal
2	Throttle
3	Parking brake
4	Gear shift

Dimensions

Craftsman 917.25849 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x10-8

Dimensions

Attachments

42" Mower deck
Type	mid-mount Craftsman
	2-blade with manual lift
Cutting width	42 inches 106 cm

Photos

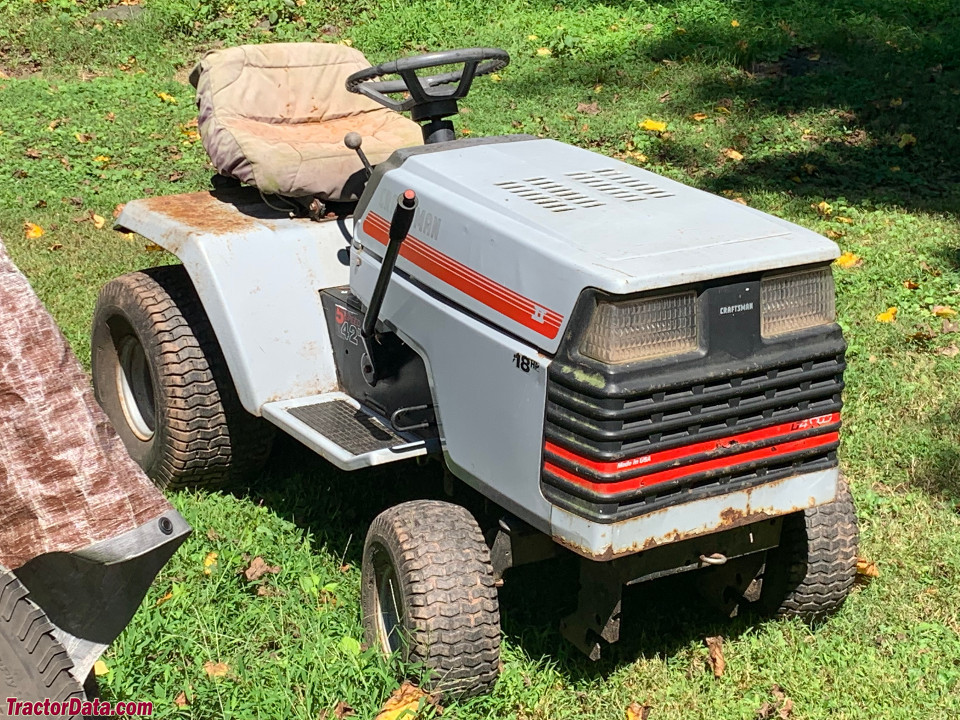

Craftsman 917.25849

Craftsman 917.25486 operator station and controls.

Recommended Implements & Sizing Guide

Engineering recommendations for Craftsman Lawn Tractors Craftsman 917.25849 based on its 18 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Craftsman Lawn Tractors Craftsman 917.25849.

Estimated Continuous Field Runtime: 3.7 hrs

Approximately 3.7 hours of continuous field operation at ~75% rated power on a full tank (3.5 gal / 13.2 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Craftsman Lawn Tractors Craftsman 917.25849 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.25849.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)18 hp

Kilowatts (kW)13.4 kW

Metric Horsepower (PS / CV)18.2 PS
