craftsman lawn tractors 917 27245
 | 2002
LTX 1000 SeriesLawn tractorAYP built | 2002 | LTX 1000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
2002 | |||||
LTX 1000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
2002 | |
|---|---|
LTX 1000 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 407777 | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 656 cc
40.03 ci |
Bore/Stroke | 2.97x2.89 inches
75 x 73 mm |
Power (gross) | 21.5 hp
16.0 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 2 qts
1.9 L |
Oil change | 50 h |

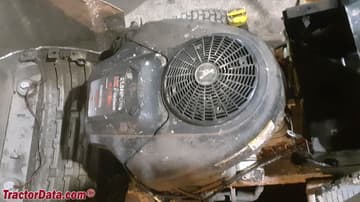

Craftsman 917.27245 Engine | |
|---|---|
 | |
Image courtesy of Henry Peet |
