craftsman lawn tractors 917 27305
 | 1999 - 2000
Garden tractorAYP built | 1999 - 2000 | Garden tractor | AYP built |
|---|---|---|---|---|
1999 - 2000 | ||||
Garden tractor | ||||
AYP built | ||||
1999 - 2000 | |
|---|---|
Garden tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler CV20S | |
gasoline | |
2-cylinder | |
air-cooled vertical-shaft V-Twin | |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power (gross) | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

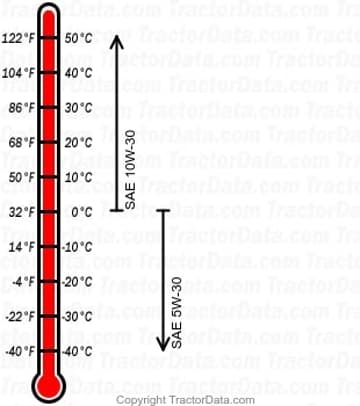

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.1 qts
2.0 L |
Oil change | 25 h |
