craftsman lawn tractors 917 27381
 | 2004
DLT 3000 SeriesLawn tractorAYP built | 2004 | DLT 3000 Series | Lawn tractor | AYP built |
|---|---|---|---|---|---|
2004 | |||||
DLT 3000 Series | |||||
Lawn tractor | |||||
AYP built | |||||
2004 | |
|---|---|
DLT 3000 Series | |
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 31P777 | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 501 cc
30.6 ci |
Bore/Stroke | 3.56x3.062 inches
90 x 78 mm |
Power (gross) | 18.5 hp
13.8 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

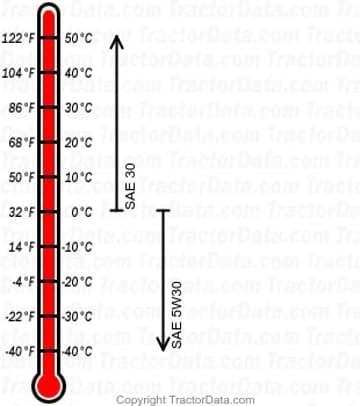

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.75 qts
1.7 L |
