Craftsman 917.27403

The Craftsman 917.27403 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 656 cc 40.03 ci engine. The listed engine power is Gasoline (listed): 21 hp / 15.7 kW. Transmission: Peerless 206.

Engine Power

Gasoline (listed): 21 hp / 15.7 kW

Fuel & Capacities

4 gal 15.1 L

Transmission

Peerless 206

Overview

	2004 DYT 4000 SeriesLawn tractorAYP built DYT 4000 Series Lawn tractor AYP built

Production
Distributor	Craftsman (a part of Sears)
Manufacturer	AYP
Lawn tractor
Original price was $1,600 in 2004
The 2004 Craftsman DYT 4000 was the Bob Vila Signature Series, branded with the signature of the home improvement celebrity. The tractor featured an upgraded seat and steering wheel in addition to a custom graphics package on the hood.

Variants
27403	gear
27404	hydrostatic

Craftsman 917.27403 Engine
21HP Briggs & Stratton 656cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Craftsman 917.27403 Transmission
6-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Front tire	15x6.0-6
Rear tire	20x10-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	16
Battery CCA	280
Battery volts	12
Battery AH	35
Battery Group	U1R

Engine

Engine Detail — 656 cc / 40.03 ci Gasoline

Manufacturer	Briggs & Stratton 407577
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	656 cc 40.03 ci
Bore/Stroke	2.97x2.89 inches 75 x 73 mm
Power	21 hp 15.7 kW
Starter	electric
Starter volts	12
Sparkplug	Champion QC12YC
Sparkplug gap	0.040 inches 1.016 mm
Oil capacity	2 qts 1.9 L
Oil change	50 h

Craftsman 917.27403 Engine

Transmission

Transmission — Peerless 206

Transmission	Peerless 206
Type	belt-driven gear
Gears	6 forward and 1 reverse

Dimensions

Craftsman 917.27403 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	20x10-8

Dimensions

Attachments

42" Mower deck
Type	mid-mount Craftsman
	2-blade with manual lift
Cutting width	42 inches 106 cm
Belt	174883

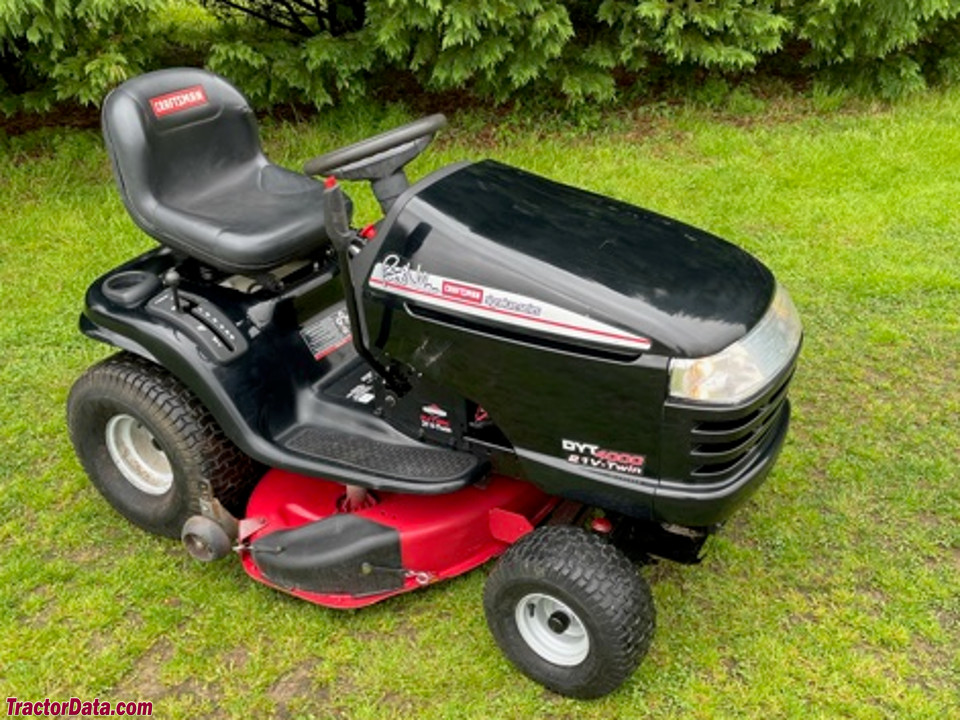

Photos

Craftsman 917.27403

Recommended Implements & Sizing Guide

Engineering recommendations for Craftsman Lawn Tractors Craftsman 917.27403 based on its 21 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Craftsman Lawn Tractors Craftsman 917.27403.

Estimated Continuous Field Runtime: 3.7 hrs

Approximately 3.7 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Craftsman Lawn Tractors Craftsman 917.27403 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.27403.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)21 hp

Kilowatts (kW)15.7 kW

Metric Horsepower (PS / CV)21.3 PS
