Ford 1310
The Ford 1310 is a tractor produced by Ford. It is equipped with a 58.2 ci 1.0 L engine. The rated power output is 19 hp 14.2 kW. Transmission: 12 forward and 4 reverse. Operating weight: 2063 to 2261 pounds.
Engine Power
19 hp
14.2 kW
Fuel & Capacities
6.9 gal
26.1 L
Transmission
12 forward and 4 reverse
Operating Weight
2063 to 2261 pounds
Ford 1310 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1983 - 1986
Ten Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1983 - 1986 | |
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1983 - 1986 | |
|---|---|
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built |
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Shibaura |
Compact Utility tractor | |
Built in Japan | |
Ford 1310 Engine | |
|---|---|
Shibaura 1.0L 3-cyl diesel | |
Engine details ...  |
Ford 1310 Power | |
|---|---|
Engine (net) | 19 hp
14.2 kW |
PTO (claimed) | 16.5 hp
12.3 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | spur gear |
Differential lock | mechanical rear |
Manual steering | |
Differential mechanical drum brakes | |
Two-post fixed ROPS. | |
Capacity | |
|---|---|
Fuel | 6.9 gal
26.1 L |
Hydraulic system | 4.5 gal
17.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 4.5 gal
17.0 L |
Pressure | 2133 psi
147.1 bar |
Total flow | 6.3 gpm
23.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 1432 lbs
649 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
live OptOptional | |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2425 |
Dimensions & Tires | |
|---|---|
Wheelbase | 63 inches
160 cm |
Weight | 2063 to 2261 pounds |
Front tire | 4-12 |
Rear tire | 8.3-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 35 |
Charging volts | 12 |
Battery volts | 12 |
Battery AH | 72 |
References | |
|---|---|
 | |
Ford Shop Manual by Peter Letourneau | |
Farm Loaders published in 1988, by Ford | |
Mid-Mount Finishing Mowers published in 1987, by Ford | |
1000 Series Tractors published in 1985, by Ford | |
1000 Series Tractors published in 1987, by Ford | |
Salesman's Reference published in 1986, by Ford | |
Repair Manual 1010 Series Tractors (SE 4301) published in 1986 | |
Sales Reference Guide published in 1986, by Ford |
Engine
| 1983 - 1986
Ten Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1983 - 1986 | |
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1983 - 1986 | |
|---|---|
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built |
Engine Detail — 58.2 ci / 1.0 L Diesel
Manufacturer | Shibaura S753 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled inline |
Displacement | 58.2 ci
1.0 L |
Bore/Stroke | 2.95x2.83 inches
75 x 72 mm |
Power (net) | 19 hp
14.2 kW |
Air cleaner | dry |
Pre-heating | glow plugs |
Compression | 23:1 |
Rated RPM | 2800 |
Idle RPM | 750-3000 |
Torque | 39 lb-ft
52.9 Nm |
Torque RPM | 1800 |
Starter volts | 12 |
Oil capacity | 4 qts
3.8 L |
Coolant capacity | 2.8 qts
2.6 L |
Transmission
| 1983 - 1986
Ten Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1983 - 1986 | |
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1983 - 1986 | |
|---|---|
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built |
Transmission options | |
|---|---|
12-speed unsynchronized gear | |
12-speed partially synchronized |

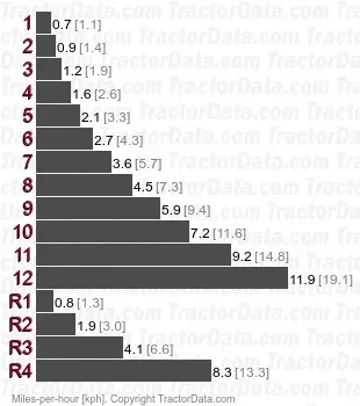

Transmission — 12 forward and 4 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 12 forward and 4 reverse |
Clutch | 216mm dry disc |
Oil capacity | 18 qts
17.0 L |
Three gears, plus reverse, in four ranges. | |
With 8.3-24 rear tires. | |
 | |

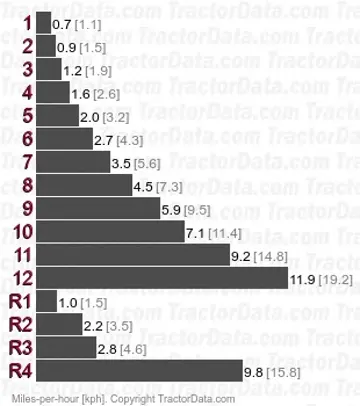

Transmission — 12 forward and 4 reverse partially synchronized
Type | partially synchronized |
Gears | 12 forward and 4 reverse |
 | |
Dimensions
| 1983 - 1986
Ten Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1983 - 1986 | |
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1983 - 1986 | |
|---|---|
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built |
Ford 1310 Tires | |
|---|---|
2WD Ag front | 4-12 |
4WD Ag front | 6.00-12 |
2WD Ag rear | 8.3-24 |
4WD Ag rear | 12.4-16 |
13.6-28 | |
2WD Lawn/turf front | 25x8.50-12 |
4WD Lawn/turf front | 25x8.50-14 |
Dimensions | |
|---|---|
Wheelbase | 63 inches
160 cm |
Length | 109.3 inches
277 cm |
2WD Width | 49.6 inches
125 cm |
4WD Width | 55.7 inches
141 cm |
2WD Weight | 2063 lbs
935 kg |
4WD Weight | 2261 lbs
1025 kg |
2WD Ground clearance | 13 inches
33 cm |
4WD Ground clearance | 10.6 inches
26 cm |
2WD Front tread | 39.4 to 50 inches
100 to 127 cm |
4WD Front tread | 45.7 inches
116 cm |
2WD Rear tread | 41.2 to 52 inches
104 to 132 cm |
4WD Rear tread | 45.5 inches
115 cm |
Ford 1310 Height | |
|---|---|
2WD Steering wheel | 56.5 inches
143 cm |
4WD Steering wheel | 55.1 inches
139 cm |
ROPS | 82.9 inches
210 cm |
2WD Exhaust | 71 inches
180 cm |
4WD Exhaust | 69.1 inches
175 cm |
Attachments
| 1983 - 1986
Ten Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1983 - 1986 | |
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1983 - 1986 | |
|---|---|
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built |
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
48" rear-mount mower deck | |
59" rear-mount mower deck | |
60" rear-mount mower deck | |
Snowblower | |
Ford 770A loader | |
Ford 770B loader | |
Backhoe | |
In addition to the mid-mount mowing deck, the Ford 1310 was matched for the 48 or 59 inch model 930A rear finish mowers. The 48-inch model 938 rear rotary cutters could be used for rough mowing. The 917 flail mowers was matched in a 62-inch widths. In addition to a loader and backhoe, the model 706 6-cubic-foot rear scoop was available. Front and rear 60 or 72-inch blade were available, plus the 762A 72-inch landscape rake. Rear tillers were available in 42 and 48-inch widths. Ford listed single-bottom plows, 67-inch disc harrows, and 72-inch cultivators as matched equipment. |
Ford 757A Backhoe | |
|---|---|
Backhoe type | Ford 757A Backhoe |
Bucket width | 8 inches
20 cm |
13 inches
33 cm | |
16 inches
40 cm | |
Digging depth | 76.5 inches
194 cm |
2-Foot flat digging depth | 74.5 inches
189 cm |
8-Foot flat digging depth | 40.3 inches
102 cm |
Reach from pivot | 107 inches
271 cm |
Loading height | 70 inches
177 cm |
Dipperstick force | 719 lbs
326 kg |
