craftsman lawn tractors 917 27566
 | 2005
Lawn tractorAYP built | 2005 | Lawn tractor | AYP built |
|---|---|---|---|---|
2005 | ||||
Lawn tractor | ||||
AYP built | ||||
2005 | |
|---|---|
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Kohler SV600 | |
gasoline | |
1-cylinder | |
air-cooled | |
Displacement | 596 cc
36.4 ci |
Bore/Stroke | 3.7x3.4 inches
94 x 86 mm |
Power (gross) | 20.0 hp
14.9 kW |
Compression | 8.5:1 |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

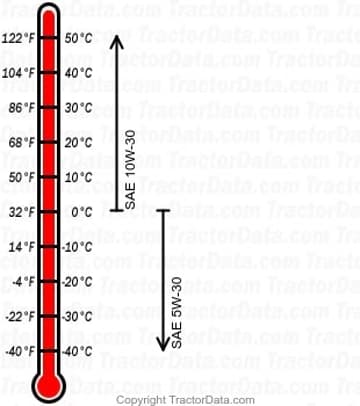

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.75 qts
1.7 L |
