craftsman lawn tractors 917 27603
![]()  | 2003
GT 5000 SeriesGarden tractorAYP built  | 2003  | GT 5000 Series  | Garden tractor  | AYP built  |
|---|---|---|---|---|---|
2003  | |||||
GT 5000 Series  | |||||
Garden tractor  | |||||
AYP built  | |||||
2003  | |
|---|---|
GT 5000 Series  | |
Garden tractor  | |
AYP built  |
Engine Detail  | |
|---|---|
Kohler CV730  | |
gasoline  | |
2-cylinder  | |
air-cooled  | |
Displacement  | 721 cc
44 ci  |
Bore/Stroke  | 3.3x2.6 inches
84 x 66 mm  |
Power (gross)  | 25 hp
18.6 kW  |
Air cleaner  | paper  |
Rated RPM  | 3600  |
Starter  | electric  |
Starter volts  | 12  |
Sparkplug  | Champion RC12YC  |
Sparkplug gap  | 0.030 inches
0.762 mm  |

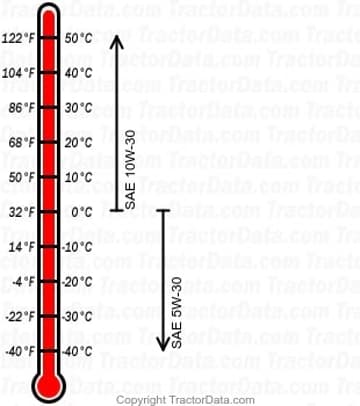

Engine Oil  | |
|---|---|
![]()  | |
Oil capacity  | 2 qts
1.9 L  |
