Craftsman 917.27635

The Craftsman 917.27635 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 721 cc 44 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: 6 forward and 2 reverse.

Engine Power

Gasoline (gross): 25 hp / 18.6 kW

Fuel & Capacities

5 gal 18.9 L

Transmission

6 forward and 2 reverse

Overview

	2005 GT 5000 SeriesGarden tractorAYP built GT 5000 Series Garden tractor AYP built

Production
Distributor	Craftsman (a part of Sears)
Manufacturer	AYP
Garden tractor

Variants
27635	gear
27636	hydrostatic

Craftsman 917.27635 Engine
25HP Kohler 721cc 2-cyl gasoline
Fuel tank	5 gal 18.9 L
Engine details ...

Craftsman 917.27635 Transmission
6-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	280
Battery volts	12
Battery AH	35
Battery Group	U1R

Engine

Engine Detail — 721 cc / 44 ci Gasoline

Manufacturer	Kohler CV730
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	721 cc 44 ci
Bore/Stroke	3.3x2.6 inches 84 x 66 mm
Power (gross)	25 hp 18.6 kW
Air cleaner	paper cartridge with foam pre-cleaner
Compression	9:1
Rated RPM	3600
Starter	electric
Starter volts	12
Sparkplug	Champion RC12YC
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	2 qts 1.9 L

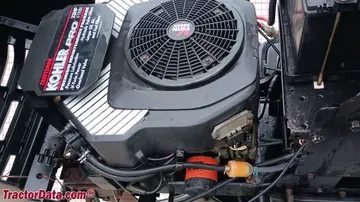

Craftsman 917.27635 Engine

Image courtesy of D. Williams

Transmission

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse

Dimensions

Craftsman 917.27635 Tires

Dimensions

Attachments

48" Mower deck
Type	mid-mount Craftsman
	3-blade with manual lift
Cutting width	48 inches 121 cm
Belt	AYP 180808 (on deck)
	AYP 174368 (tractor to deck)
Cut height	1.5 to 4.5 inch 3 to 11 cm

Photos

Sears Craftsman 917.276351 garden tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Craftsman Lawn Tractors Craftsman 917.27635 based on its 25 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Craftsman Lawn Tractors Craftsman 917.27635.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Craftsman Lawn Tractors Craftsman 917.27635 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.27635.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)25 hp

Kilowatts (kW)18.6 kW

Metric Horsepower (PS / CV)25.3 PS
