Craftsman 917.27681
 | 2006
Lawn tractorAYP built |
|---|---|
2006 | |
Lawn tractor | |
AYP built | |
2006 | |
|---|---|
Lawn tractor | |
AYP built |
Engine Detail | |
|---|---|
Briggs & Stratton 31P977 | |
gasoline | |
1-cylinder | |
air-cooled | |
Displacement | 501 cc
30.59 ci |
Bore/Stroke | 3.563x3.062 inches
91 x 78 mm |
Power (gross) | 20 hp
14.9 kW |
Air cleaner | paper cartridge |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

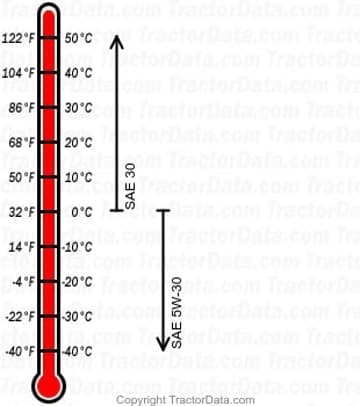

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.75 qts
1.7 L |
