craftsman lawn tractors 917 28035
 | 2010
SRD SeriesLawn tractorHusqvarna built | 2010 | SRD Series | Lawn tractor | Husqvarna built |
|---|---|---|---|---|---|
2010 | |||||
SRD Series | |||||
Lawn tractor | |||||
Husqvarna built | |||||
2010 | |
|---|---|
SRD Series | |
Lawn tractor | |
Husqvarna built |
Engine Detail | |
|---|---|
Briggs & Stratton | |
gasoline | |
1-cylinder | |
air-cooled | |
Displacement | 502 cc
30.63 ci |
Power (gross) | 17.5 hp
13.0 kW |
Air cleaner | dual paper element |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

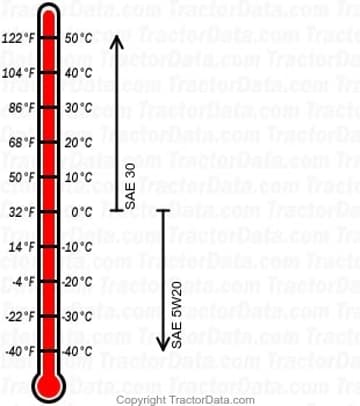

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.5 qts
1.4 L |
