craftsman lawn tractors 917 28922
 | 2009
YTS3000 SeriesLawn tractorHusqvarna built | 2009 | YTS3000 Series | Lawn tractor | Husqvarna built |
|---|---|---|---|---|---|
2009 | |||||
YTS3000 Series | |||||
Lawn tractor | |||||
Husqvarna built | |||||
2009 | |
|---|---|
YTS3000 Series | |
Lawn tractor | |
Husqvarna built |
Engine Detail | |
|---|---|
Briggs & Stratton 331877 | |
gasoline | |
1-cylinder | |
air-cooled | |
Displacement | 540 cc
32.95 ci |
Bore/Stroke | 3.70x3.06 inches
94 x 78 mm |
Power (gross) | 21 hp
15.7 kW |
Air cleaner | paper element |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |

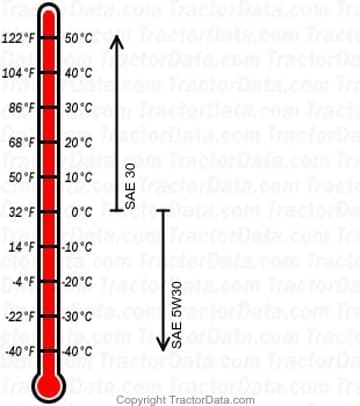

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.4 qts
1.3 L |
