Craftsman Professional 247.28984

The Craftsman Professional 247.28984 is a tractor produced by Craftsman Professional Lawn Tractors. It is equipped with a 810 cc 49.43 ci engine. The listed engine power is Gasoline (gross): 28 hp / 20.9 kW. Transmission: infinite forward and reverse. Operating weight: 778 lbs 352 kg.

Engine Power

Gasoline (gross): 28 hp / 20.9 kW

Fuel & Capacities

3 gal 11.4 L

Transmission

infinite forward and reverse

Operating Weight

778 lbs 352 kg

Overview

	2010 - PGT 9000 SeriesGarden tractorMTD built
2010 -
PGT 9000 Series
Garden tractor
MTD built

2010 -
PGT 9000 Series
Garden tractor
MTD built

Production
Distributor	Craftsman Professional (a part of Sears)
Manufacturer	MTD
Garden tractor
Original price	$3,730 (2010)

Craftsman Professional 247.28984 Engine
28HP Briggs & Stratton 810cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Craftsman Professional 247.28984 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual sector and pinion
Disc brakes
Open operator station. Adjustable seat with arm rests and cup holder.

Tractor hitch
Type	sleeve hitch (optional)

Dimensions & Tires
Weight	778 lbs 352 kg
Front tire	16x7.5x8
Rear tire	23x10.5x12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

2011 Customer Buying Guide published by Sears

Engine

	2010 - PGT 9000 SeriesGarden tractorMTD built
2010 -
PGT 9000 Series
Garden tractor
MTD built

2010 -
PGT 9000 Series
Garden tractor
MTD built

Engine Detail — 810 cc / 49.43 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	810 cc 49.43 ci
Power (gross)	28 hp 20.9 kW
Air cleaner	cartridge
Starter	electric
Starter volts	12
Sparkplug	Champion RC12YC
Sparkplug gap	0.030 inches 0.762 mm

Transmission

	2010 - PGT 9000 SeriesGarden tractorMTD built
2010 -
PGT 9000 Series
Garden tractor
MTD built

2010 -
PGT 9000 Series
Garden tractor
MTD built

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Towing release on rear of tractor. Pull lever out and up to free-wheel.

Dimensions

	2010 - PGT 9000 SeriesGarden tractorMTD built
2010 -
PGT 9000 Series
Garden tractor
MTD built

2010 -
PGT 9000 Series
Garden tractor
MTD built

Craftsman Professional 247.28984 Tires
Lawn/turf front	16x7.5x8
Lawn/turf rear	23x10.5x12

Dimensions
Weight	778 lbs 352 kg

Attachments

	2010 - PGT 9000 SeriesGarden tractorMTD built
2010 -
PGT 9000 Series
Garden tractor
MTD built

2010 -
PGT 9000 Series
Garden tractor
MTD built

Attachment overview
Optional three-bin bagger (24020).
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

54" Mower deck
Type	mid-mount Craftsman
	3-blade, lift is manual or electric (optional)
Cutting width	54 inches 137 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	12

Photos

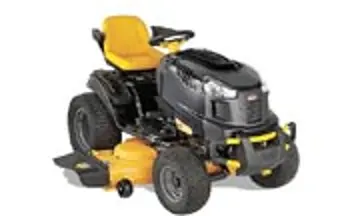

Craftsman Professional 247.28984 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Craftsman Professional Lawn Tractors Craftsman Professional 247.28984 based on its 28 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Craftsman Professional Lawn Tractors Craftsman Professional 247.28984.

Estimated Continuous Field Runtime: 2.1 hrs

Approximately 2.1 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~1.5 gal/hr (5.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Craftsman Professional Lawn Tractors Craftsman Professional 247.28984 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Professional Lawn Tractors Craftsman Professional 247.28984.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)28 hp

Kilowatts (kW)20.9 kW

Metric Horsepower (PS / CV)28.4 PS
