Cub Cadet 5234D

The Cub Cadet 5234D is a tractor produced by Cub Cadet. It is equipped with a 51.8 ci 0.8 L engine. The rated power output is 23 hp 17.2 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1350 lbs 612 kg.

Overview

	2004 - 2008 5000 SeriesSub-Compact Utility tractor
2004 - 2008
5000 Series
Sub-Compact Utility tractor

Production
Manufacturer	Cub Cadet
Sub-Compact Utility tractor
Original price was $9,299 in 2007

Cub Cadet 5234D Engine
Daihatsu 0.8L 3-cyl diesel
Engine details ...

Cub Cadet 5234D Transmission
hydrostatic
Transmission details ...

Cub Cadet 5234D Power
Engine	23 hp 17.2 kW
PTO (claimed)	17 hp 12.7 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
External dual disc brakes
Two-post folding ROPS.

Capacity
Fuel	5.6 gal 21.2 L
Hydraulic system	5 gal 18.9 L

Hydraulics
Type	open center
Capacity	5 gal 18.9 L
Pressure	1500 psi 103.4 bar
Valves	1 (optional)
Total flow	5.5 gpm 20.8 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1025 lbs 464 kg
Rear lift (at 24"/610mm)	680 lbs 308 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electric
Rear PTO Type	540 (1.375)
Mid PTO	independent
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	55 inches 139 cm
Weight	1350 lbs 612 kg
Front tire	18x9.5-8
Rear tire	26x12x12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	30
Battery CCA	500
Battery volts	12

References
Outdoor Power Equipment published in 2004, by Cub Cadet
Compact Tractors published in 2005, by Cub Cadet
Compact Tractors published in 2006, by Cub Cadet

Engine

Engine Detail — 51.8 ci / 0.8 L Diesel

Manufacturer	Daihatsu
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled OHV
Displacement	51.8 ci 0.8 L
Bore/Stroke	2.68x3.07 inches 68 x 78 mm
Power	23 hp 17.2 kW
Fuel system	indirect injection
Rated RPM	3600
Idle RPM	1200-3600
Starter volts	12
Coolant capacity	5.3 qts 5.0 L
Intake valve clearance	0.008 inches (cold) 0.203 mm
Exhaust valve clearance	0.008 inches (cold) 0.203 mm
Oil capacity	3.5 qts 3.3 L
Oil change	150 h

Cub Cadet 5234D Engine

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	20 qts 18.9 L
Oil type	Cub Cadet Drive System Fluid Plus
Oil change	200 h
Two-range hydrostatic transmission with right-hand forward and reverse pedals. Tractor must be stopped to shift ranges.

	Cub Cadet Drive System Fluid Plus

Dimensions

Cub Cadet 5234D Tires
Ag front	18x9.5-8
Ag rear	26x12x12
Lawn/turf front	18x8.5-8
Lawn/turf rear	26x12-12

Dimensions
Wheelbase	55 inches 139 cm
Length	85 inches 215 cm
	103 inches (with hitch) 261 cm
Width	45 inches 114 cm
Height (ROPS)	82 inches 208 cm
Weight	1350 lbs 612 kg

Attachments

Attachment overview
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Front-end loader

Photos

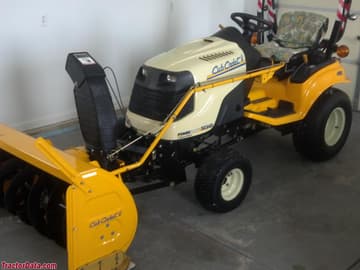

Cub Cadet 5234D
