Massey Ferguson 1020

The Massey Ferguson 1020 is a tractor produced by Massey Ferguson. It is equipped with a 68.7 ci 1.1 L engine. The listed engine power is Diesel (listed): 21 hp / 15.7 kW. Transmission: infinite forward and reverse. Operating weight: 1896 to 2723 pounds.

Engine Power

Diesel (listed): 21 hp / 15.7 kW

Fuel & Capacities

5.8 gal 22.0 L

Transmission

infinite forward and reverse

Operating Weight

1896 to 2723 pounds

Overview

	1983 - 1994 1000 Compact SeriesCompact Utility tractorToyosha built 1000 Compact Series Compact Utility tractor Toyosha built

Production
Distributor	Massey Ferguson
Manufacturer	Toyosha
Compact Utility tractor
Built in Japan
Original price was $9,700 in 1994

Massey Ferguson 1020 Engine
Toyosha 1.1L 3-cyl diesel
Fuel tank	5.8 gal 22.0 L
Engine details ...

Massey Ferguson 1020 Power
Engine	21 hp 15.7 kW
Gear PTO (claimed)	17 hp 12.7 kW
Hydro PTO (claimed)	14.5 hp 10.8 kW

Mechanical
Two- or four-wheel drive
Steering	manual
Differential mechanical drum brakes
Two-post ROPS.

Hydraulics
Type	open center
Pump flow	5.1 gpm 19.3 lpm

Tractor hitch
Rear Type	I
Gear Rear lift (at ends)	1543 lbs 699 kg
Hydro Rear lift (at ends)	1697 lbs 769 kg

Power Take-off (PTO)
Gear Rear PTO	transmission
Hydro Rear PTO	live
Rear PTO Type	540 (1.375)
Mid PTO Type	2226 (with hydro)
Front PTO	independent (optional)
Clutch	electric

Dimensions & Tires
Gear Wheelbase	56.7 inches 144 cm
Hydro Wheelbase	59.1 inches 150 cm
Weight	1896 to 2723 pounds
Front tire	4.00x12
2WD Rear tire	8.3x24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

Loaders - Compact and Agricultural published in 1989, by Massey Ferguson
Compact Tractors published in 1986, by Massey Ferguson
Compact Tractors and Implements published in 1987, by Massey Ferguson
1020 published in 1986, by Massey Ferguson

Engine

Engine Detail — 68.7 ci / 1.1 L Diesel

Manufacturer	Toyosha CS-112
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	68.7 ci 1.1 L
Bore/Stroke	2.953x3.347 inches 75 x 85 mm
Power	21 hp 15.7 kW
Fuel system	indirect injection
Air cleaner	single dry element
Pre-heating	glow plugs
Compression	23:1
Rated RPM	2350
Firing order	1-3-2
Starter volts	12
Oil capacity	2.3 qts 2.2 L
Coolant capacity	4.4 qts 4.2 L

Transmission

Transmission options
12-speed gear
hydrostatic

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Clutch	198mm dry disc
Oil capacity	18 qts 17.0 L
Three speeds with high and low ranges and fast and slow modes.

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	27.6 qts 26.1 L

Dimensions

Massey Ferguson 1020 Tires
2WD Standard tires (ag)	Front: 4.00x12. Rear: 8.3x24
4WD Standard tires (ag)	Front: 6x14. Rear: 8.3x24
2WD Lawn/turf front	24x8.50-12
4WD Lawn/turf front	25x8.50-14
Lawn/turf rear	13.6x16

Dimensions
Gear Wheelbase	56.7 inches 144 cm
Hydro Wheelbase	59.1 inches 150 cm
Gear Length	94.5 inches 240 cm
Hydro Length	114 inches 289 cm
2WD Width	45.5 inches 115 cm
4WD Width	47 inches 119 cm
Height (steering wheel)	52.9 inches 134 cm
2WD gear Shipping weight	1896 lbs 860 kg
4WD hydro Shipping weight	2723 lbs 1235 kg
2WD Ground clearance	13.6 inches 34 cm
4WD Ground clearance	11.6 inches 29 cm

Attachments

Attachment overview
60" mid-mount mower deck
Blade
Front-end loader

Photos

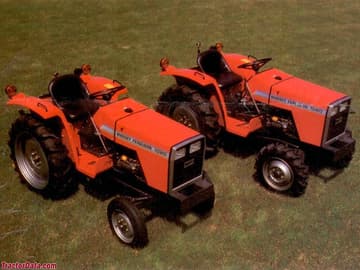

Massey Ferguson 1020 2WD and 4WD tractors.

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1020 based on its 21 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1020.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (5.8 gal / 22 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
