cub cadet 5234d
 | 2004 - 2008
5000 SeriesSub-Compact Utility tractor | 2004 - 2008 | 5000 Series | Sub-Compact Utility tractor |
|---|---|---|---|---|
2004 - 2008 | ||||
5000 Series | ||||
Sub-Compact Utility tractor | ||||
2004 - 2008 | |
|---|---|
5000 Series | |
Sub-Compact Utility tractor |
Engine Detail | |
|---|---|
Daihatsu | |
diesel | |
3-cylinder | |
liquid-cooled OHV | |
Displacement | 51.8 ci
0.8 L |
Bore/Stroke | 2.68x3.07 inches
68 x 78 mm |
Power | 23 hp
17.2 kW |
Fuel system | indirect injection |
Rated RPM | 3600 |
Idle RPM | 1200-3600 |
Starter volts | 12 |
Coolant capacity | 5.3 qts
5.0 L |
Intake valve clearance | 0.008 inches (cold)
0.203 mm |
Exhaust valve clearance | 0.008 inches (cold)
0.203 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 3.5 qts
3.3 L |
Oil change | 150 h |

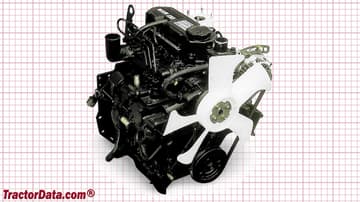

Cub Cadet 5234D Engine | |
|---|---|
 |
