cub cadet 5254
 | 2004 - 2008
5000 SeriesSub-Compact Utility tractor | 2004 - 2008 | 5000 Series | Sub-Compact Utility tractor |
|---|---|---|---|---|
2004 - 2008 | ||||
5000 Series | ||||
Sub-Compact Utility tractor | ||||
2004 - 2008 | |
|---|---|
5000 Series | |
Sub-Compact Utility tractor |
Engine Detail | |
|---|---|
Kawasaki | |
gasoline | |
2-cylinder | |
liquid-cooled | |
Displacement | 45.5 ci
0.7 L |
Bore/Stroke | 3.07x3.07 inches
78 x 78 mm |
Power | 25 hp
18.6 kW |
Fuel system | twin carburetor |
Rated RPM | 3600 |
Idle RPM | 1450-3600 |
Starter volts | 12 |
Coolant capacity | 3.5 qts
3.3 L |
Sparkplug gap | 0.030 inches
0.762 mm |
Intake valve clearance | 0.006 inches (cold)
0.152 mm |
Exhaust valve clearance | 0.006 inches (cold)
0.152 mm |

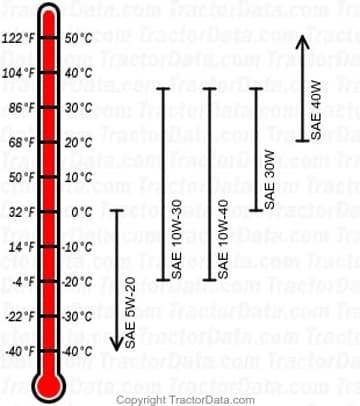

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.1 qts
2.0 L |
Oil change | 100 h |
