Cub Cadet 6284D

The Cub Cadet 6284D is a tractor produced by Cub Cadet. It is equipped with a 69 ci 1.1 L engine. The rated power output is 28 hp 20.9 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 950 lbs 430 kg.

Overview

	2005 - 2007 Compact Utility tractor
2005 - 2007
Compact Utility tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Compact Utility tractor
Original price was $12,999 in 2007

Cub Cadet 6284D Engine
Caterpillar 1.1L 3-cyl diesel
Fuel tank	6 gal 22.7 L
Engine details ...

Cub Cadet 6284D Transmission
hydrostatic
Transmission details ...

Cub Cadet 6284D Power
Engine	28 hp 20.9 kW
PTO (claimed)	21 hp 15.7 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Expanding dry shoe brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Pressure	1500 psi 103.4 bar
Valves	1
Pump flow	5 gpm 18.9 lpm
Total flow	8 gpm 30.3 lpm
Steering flow	3 gpm 11.4 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1150 lbs 521 kg
Rear lift (at 24"/610mm)	950 lbs 430 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electric
Rear PTO Type	540 (1.375)
Mid PTO	independent
Mid PTO Type	2000 (1.00)

Dimensions & Tires
Wheelbase	58 inches 147 cm
Weight	1953 lbs 885 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	500
Battery volts	12

References
Operator's Manual 612 Backhoe (769-00150A) published in 2005
Owner's Manual Series 6284 Compact Tractor (769-01158A) published in 2004
Compact Tractors published in 2005, by Cub Cadet
Compact Tractors published in 2006, by Cub Cadet

Engine

Engine Detail — 69 ci / 1.1 L Diesel

Manufacturer	Caterpillar C1.1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled inline
Displacement	69 ci 1.1 L
Bore/Stroke	3.03x3.19 inches 77 x 81 mm
Power	28 hp 20.9 kW
Compression	23:1
Rated RPM	3400
Idle RPM	1400-3400
Torque	49.4 lb-ft 67.0 Nm
Torque RPM	2400
Starter	electric
Starter volts	12
Oil capacity	5.2 qts 4.9 L
Coolant capacity	5.5 qts 5.2 L
Intake valve clearance	0.008 inches 0.203 mm
Exhaust valve clearance	0.008 inches 0.203 mm

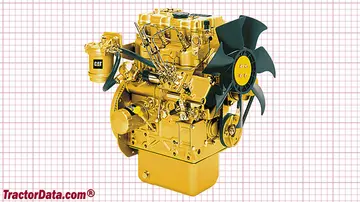

Cub Cadet 6284D Engine

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Cub Cadet 6284D Tires
Lawn/turf front	23x9.5
Lawn/turf rear	31x12
Industrial front	23x8.5
Industrial rear	10x16.5

Dimensions
Wheelbase	58 inches 147 cm
Length	91 inches 231 cm
Width	50 inches 127 cm
Height	82 inches 208 cm
Weight	1953 lbs 885 kg
Ground clearance	10 inches 25 cm

Attachments

Attachment overview
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe
The mid-mount mowers require the lift kit (590-831-100). The front blade and snow blower require the front hitch kit (590-611-100). The snow blower also requires the front PTO kit (590-624-100).

Cub Cadet 612 Backhoe
Backhoe type	Cub Cadet 612 Backhoe
Weight	950 lbs 430 kg
Transport height	66.8 inches 169 cm
Bucket width	8 inches 20 cm
	12 inches 30 cm
	16 inches 40 cm
	18 inches 45 cm
	24 inches 60 cm
Digging depth	78 inches 198 cm
Reach from pivot	94 inches 238 cm
Loading height	52.5 inches 133 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	1935 lbs 877 kg
Dipperstick force	1010 lbs 458 kg

Photos

Cub Cadet 6284D tractor photo
