cub cadet 7252
 | 2003
7000 SeriesCompact Utility tractor | 2003 | 7000 Series | Compact Utility tractor |
|---|---|---|---|---|
2003 | ||||
7000 Series | ||||
Compact Utility tractor | ||||
2003 | |
|---|---|
7000 Series | |
Compact Utility tractor |
Engine Detail | |
|---|---|
Kawasaki FD750 | |
gasoline | |
2-cylinder | |
liquid-cooled | |
Displacement | 45.6 ci
0.7 L |
Bore/Stroke | 3.07x3.07 inches
78 x 78 mm |
Power | 25 hp
18.6 kW |
Fuel system | dual carburetor |
Air cleaner | paper element |
Pre-heating | coolant heater (optional) |
Rated RPM | 3600 |
Idle RPM | 1550-3600 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 3.5 qts
3.3 L |
Coolant change | 400 h |
Sparkplug gap | 0.030 inches
0.762 mm |
Intake valve clearance | 0.006 inches (cold)
0.152 mm |
Exhaust valve clearance | 0.006 inches (cold)
0.152 mm |

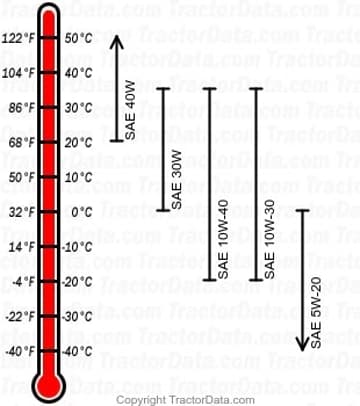

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.1 qts
2.0 L |
Oil change | 100 h |
