cub cadet 7275
 | 1996 - 1997
7000 SeriesCompact Utility tractorMitsubishi built | 1996 - 1997 | 7000 Series | Compact Utility tractor | Mitsubishi built |
|---|---|---|---|---|---|
1996 - 1997 | |||||
7000 Series | |||||
Compact Utility tractor | |||||
Mitsubishi built | |||||
1996 - 1997 | |
|---|---|
7000 Series | |
Compact Utility tractor | |
Mitsubishi built |
Engine Detail | |
|---|---|
Mitsubishi K3M | |
diesel | |
3-cylinder | |
liquid-cooled overhead valve (OHV) | |
Displacement | 91.3 ci
1.5 L |
Bore/Stroke | 3.307x3.543 inches
84 x 90 mm |
Power | 27 hp
20.1 kW |
Fuel system | direct injection |
Air cleaner | dry |
Compression | 18:1 |
Rated RPM | 2500 |
Idle RPM | 970-2750 |
Firing order | 1-3-2 |
Starter volts | 12 |
Coolant capacity | 6.7 qts
6.3 L |
Coolant change | 1000 h |
Intake valve clearance | 0.010 inches*Cold
0.254 mm |
Exhaust valve clearance | 0.010 inches*Cold
0.254 mm |

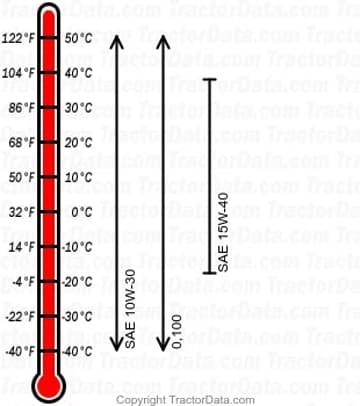

Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
