cub cadet 7305
 | 1998 - 2003
7000 SeriesCompact Utility tractor | 1998 - 2003 | 7000 Series | Compact Utility tractor |
|---|---|---|---|---|
1998 - 2003 | ||||
7000 Series | ||||
Compact Utility tractor | ||||
1998 - 2003 | |
|---|---|
7000 Series | |
Compact Utility tractor |
Engine Detail | |
|---|---|
Mitsubishi | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 91.29 ci
1.5 L |
Bore/Stroke | 3.307x3.543 inches
84 x 90 mm |
Power (net) | 27 hp
20.1 kW |
Power (gross) | 30 hp
22.4 kW |
Fuel system | direct injection |
Air cleaner | dry |
Pre-heating | glow plugs |
Compression | 18:1 |
Rated RPM | 2750 |
Idle RPM | 970-2980 |
Firing order | 1-3-2 |
Starter volts | 12 |
Starter power | 2.15 hp
1.6 kW |
Coolant capacity | 6.7 qts
6.3 L |
Intake valve clearance | 0.010 inches*Cold
0.254 mm |
Exhaust valve clearance | 0.010 inches*Cold
0.254 mm |

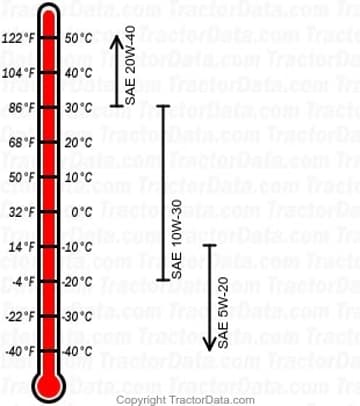

Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
