cub cadet 7530
 | 2004 - 2010
Compact Utility tractorMitsubishi built | 2004 - 2010 | Compact Utility tractor | Mitsubishi built |
|---|---|---|---|---|
2004 - 2010 | ||||
Compact Utility tractor | ||||
Mitsubishi built | ||||
2004 - 2010 | |
|---|---|
Compact Utility tractor | |
Mitsubishi built |
Engine Detail | |
|---|---|
Mitsubishi K3M | |
turbocharged diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 91.29 ci
1.5 L |
Bore/Stroke | 3.307x3.543 inches
84 x 90 mm |
Power | 30 hp
22.4 kW |
Fuel system | Bosch pump with DLLA 150 P injectors |
Pre-heating | glow plugs |
| thermostart |
Compression | 18:1 |
Rated RPM | 2500 |
Firing order | 1-3-2 |
Starter volts | 12 |
Coolant capacity | 5.8 qts
5.5 L |
Intake valve clearance | 0.010 inches (cold)
0.254 mm |
Exhaust valve clearance | 0.010 inches (cold)
0.254 mm |

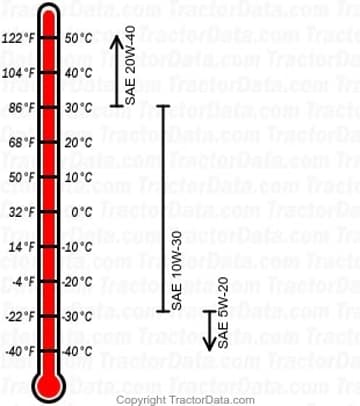

Engine Oil | |
|---|---|
 | |
Oil capacity | 5.3 qts
5.0 L |
Oil change | 100 h |

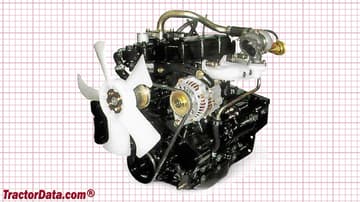

Cub Cadet 7530 Engine | |
|---|---|
 |
