Cub Cadet 8454

The Cub Cadet 8454 is a tractor produced by Cub Cadet. It is equipped with a 134 ci 2.2 L engine. The rated power output is 45 hp 33.6 kW. Transmission: 8 forward and reverse. Operating weight: 994 lbs 450 kg.

Overview

	2004 - 2007 8000 SeriesCompact Utility tractorDaedong built
2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

Production
Distributor	Cub Cadet
Manufacturer	Daedong
Compact Utility tractor
Original price was $18,000 in 2007

Cub Cadet 8454 Engine
Daedong 2.2L 4-cyl diesel
Fuel tank	11.5 gal 43.5 L
Engine details ...

Cub Cadet 8454 Transmission
8-speed synchronized shuttle
Transmission details ...

Cub Cadet 8454 Power
Engine	45 hp 33.6 kW
PTO (claimed)	38 hp 28.3 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Pump flow	8.2 gpm 31.0 lpm
Total flow	13.1 gpm 49.6 lpm
Steering flow	4.9 gpm 18.5 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift (at ends)	3056 lbs 1386 kg
Rear lift (at 24"/610mm)	2987 lbs 1354 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	71.6 inches 181 cm
Weight	4468 lbs 2026 kg
Front tire	9.5-16
Rear tire	14.9-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Outdoor Power Equipment published in 2004, by Cub Cadet
Compact Tractors published in 2005, by Cub Cadet
Compact Tractors published in 2006, by Cub Cadet

Engine

	2004 - 2007 8000 SeriesCompact Utility tractorDaedong built
2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

Engine Detail — 134 ci / 2.2 L Diesel

Manufacturer	Daedong
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	134 ci 2.2 L
Power	45 hp 33.6 kW
Fuel system	indirect injection
Air cleaner	dual element, cyclone type
Rated RPM	2600
Starter volts	12

Transmission

	2004 - 2007 8000 SeriesCompact Utility tractorDaedong built
2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Clutch	dry disc

Dimensions

	2004 - 2007 8000 SeriesCompact Utility tractorDaedong built
2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

Cub Cadet 8454 Tires
Ag front	9.5-16
Ag rear	14.9-24
Lawn/turf front	29 x 12.5 x 15
Lawn/turf rear	21.5 x 16.1
Industrial front	12 x 16.5
Industrial rear	17.5 x 24

Dimensions
Wheelbase	71.6 inches 181 cm
Length	130.7 inches 331 cm
Width	61 inches 154 cm
Height (ROPS)	95.5 inches 242 cm
Weight	4468 lbs 2026 kg

Attachments

	2004 - 2007 8000 SeriesCompact Utility tractorDaedong built
2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

2004 - 2007
8000 Series
Compact Utility tractor
Daedong built

Attachment overview
Front-end loader
Backhoe

Cub Cadet 644 Backhoe
Backhoe type	Cub Cadet 644 Backhoe
Weight	944 lbs 428 kg
Transport height	75 inches 190 cm
Bucket width	9 inches 22 cm
	12 inches 30 cm
	16 inches 40 cm
	18 inches 45 cm
	24 inches 60 cm
	36 inches 91 cm
Digging depth	90 inches 228 cm
Reach from pivot	119 inches 302 cm
Loading height	66 inches 167 cm
Bucket Rotation	170°
Swing Arc	180°
Bucket force	2675 lbs 1213 kg
Dipperstick force	2105 lbs 954 kg

Cub Cadet 845 Backhoe
Backhoe type	Cub Cadet 845 Backhoe
Weight	994 lbs 450 kg
Transport height	83.1 inches 211 cm
Bucket width	9 inches 22 cm
	12 inches 30 cm
	16 inches 40 cm
	18 inches 45 cm
	24 inches 60 cm
	36 inches 91 cm
Digging depth	102 inches 259 cm
Reach from pivot	132 inches 335 cm
Loading height	77 inches 195 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3550 lbs 1610 kg
Dipperstick force	2225 lbs 1009 kg

Photos

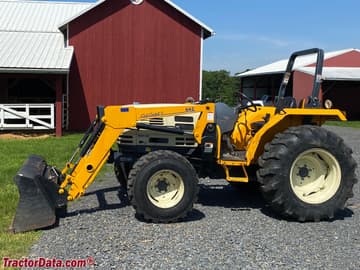

Cub Cadet 8454 compact utility tractor with model 642 front-end loader.
