Cub Cadet Sc2400

The Cub Cadet Sc2400 is a tractor produced by Cub Cadet. It is equipped with a 55.1 ci 0.9 L engine. The rated power output is 20.4 hp 15.2 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 366 lbs 166 kg.

Overview

	2008 - 2011 Sub-Compact Utility tractorYanmar built
2008 - 2011
Sub-Compact Utility tractor
Yanmar built

2008 - 2011
Sub-Compact Utility tractor
Yanmar built

Production
Distributor	Cub Cadet
Manufacturer	Yanmar
Sub-Compact Utility tractor
Original price was $11,499 in 2009

Variants
Sc2400 TD	includes 60-inch mid-mount mower
Sc2400 TL	includes loader
Sc3400 TLD	includes mower and loader
Sc2450	tractor backhoe

Cub Cadet Sc2400 Engine
Yanmar 0.9L 3-cyl diesel
Fuel tank	5.8 gal 22.0 L
Engine details ...

Cub Cadet Sc2400 Transmission
hydrostatic
Transmission details ...

Cub Cadet Sc2400 Power
Engine (gross)	24 hp 17.9 kW
Engine (net)	20.4 hp 15.2 kW
PTO (claimed)	16.5 hp 12.3 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Steering	power
Wet disc brakes
Two-post fixed ROPS standard. Optional steel cab.

Hydraulics
Type	open center
Pump flow	3.5 gpm 13.2 lpm
Total flow	7.1 gpm 26.9 lpm
Steering flow	3.6 gpm 13.6 lpm

Tractor hitch
Rear Type	I (limited)
Rear lift (at 24"/610mm)	661 lbs 299 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@3111
Mid PTO	independent
Mid PTO Type	2100 (SAE 16/32)
Engine RPM	2100@3338

Dimensions & Tires
Wheelbase	55.1 inches 139 cm
Weight	1280 lbs 580 kg
Front tire	18x8.5-10
Rear tire	26x12.0-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery volts	12

References
Compact Tractors published in 2010, by Cub Cadet
Sc2400 Sub-Compact Tractor published in 2009, by Cub Cadet
Operator's Manual Sc2400 published in 2009, by Cub Cadet

Engine

	2008 - 2011 Sub-Compact Utility tractorYanmar built
2008 - 2011
Sub-Compact Utility tractor
Yanmar built

2008 - 2011
Sub-Compact Utility tractor
Yanmar built

Engine Detail — 55.1 ci / 0.9 L Diesel

Manufacturer	Yanmar 3TNV72
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	55.1 ci 0.9 L
Bore/Stroke	2.835x2.913 inches 72 x 74 mm
Power (net)	20.4 hp 15.2 kW
Power (gross)	24 hp 17.9 kW
Fuel system	indirect injection
Air cleaner	4-inch dry element
Rated RPM	3300
Idle RPM	1150-3470
Starter	electric
Starter volts	12
Oil capacity	2.5 qts 2.4 L
Coolant capacity	3.4 qts 3.2 L

Transmission

	2008 - 2011 Sub-Compact Utility tractorYanmar built
2008 - 2011
Sub-Compact Utility tractor
Yanmar built

2008 - 2011
Sub-Compact Utility tractor
Yanmar built

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	8 qts 7.6 L

Dimensions

	2008 - 2011 Sub-Compact Utility tractorYanmar built
2008 - 2011
Sub-Compact Utility tractor
Yanmar built

2008 - 2011
Sub-Compact Utility tractor
Yanmar built

Cub Cadet Sc2400 Tires
Ag front	18x8.5-10
Ag rear	26x12.0-12
Lawn/turf front	18x8.50-10
Lawn/turf rear	26x12.00-12

Dimensions
Wheelbase	55.1 inches 139 cm
Length	95.5 inches 242 cm
Width	44.5 inches 113 cm
Height (steering wheel)	49.9 inches 126 cm
Height (ROPS)	71.5 inches 181 cm
Operating weight	1280 lbs 580 kg
Ground clearance	7.5 inches 19 cm

Attachments

	2008 - 2011 Sub-Compact Utility tractorYanmar built
2008 - 2011
Sub-Compact Utility tractor
Yanmar built

2008 - 2011
Sub-Compact Utility tractor
Yanmar built

Attachment overview
60" mid-mount mower deck
Snowblower
Blade
Front-end loader

60" Mower deck
Type	mid-mount Cub Cadet MM60RSe
	3-blade
Cutting width	60 inches 152 cm
Weight	366 lbs 166 kg
Cut height	1 to 4 inch 2 to 10 cm

Photos

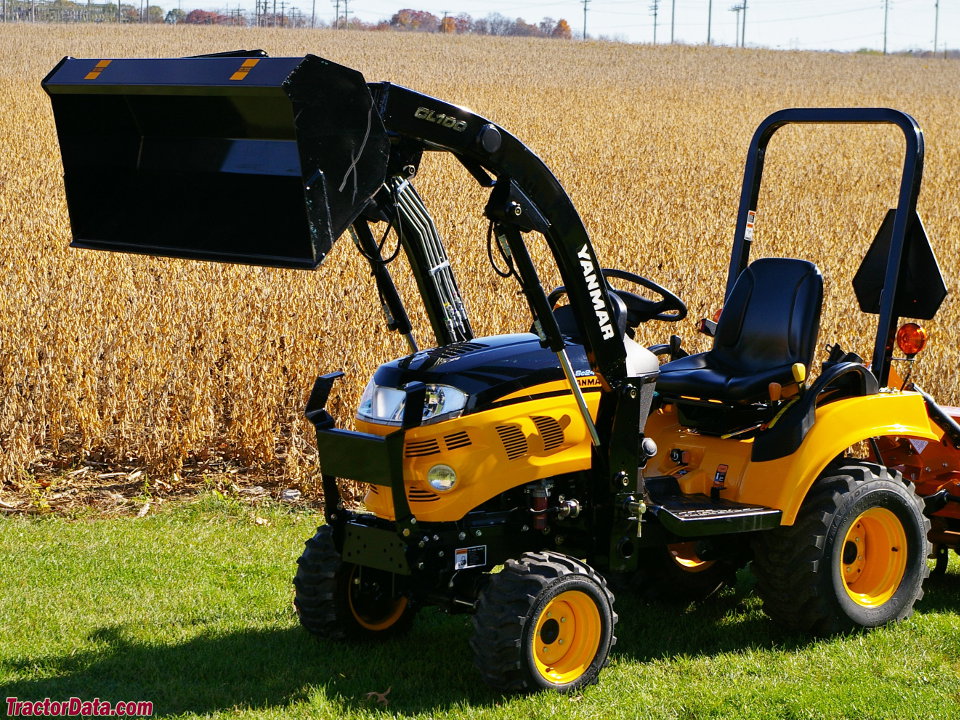

Cub Cadet - Yanmar Sc2400, left side.

Cub Cadet - Yanmar Sc2400, right side.
