Kubota A-195
The Kubota A-195 is a tractor produced by Kubota. It is equipped with a 68.5 ci 1.1 L engine. The listed engine power is Diesel (listed): 18.7 hp / 13.9 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1532 lbs 694 kg.
Overview
 | 1992 - 1996
Aste SeriesSub-Compact Utility tractor
Aste Series
Sub-Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Sub-Compact Utility tractor | |
Variants | |
|---|---|
A-195F | glide shift |
Kubota A-195 Engine | |
|---|---|
Kubota 1.1L 3-cyl diesel | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Kubota A-195 Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
Kubota A-195 Power | |
|---|---|
Engine | 18.7 hp
13.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Two-post ROPS. |
Tractor hitch | |
|---|---|
Rear Type | 0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 450@2650 |
795@2650 | |
1187@2650 | |
-612@2650 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 53.2 inches
135 cm |
Weight | 1532 lbs
694 kg |
Front tire | 6-12 |
Rear tire | 8.3-20 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 68.5 ci / 1.1 L Diesel
Manufacturer | Kubota D1105 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 68.5 ci
1.1 L |
Bore/Stroke | 3.07x3.09 inches
78 x 78 mm |
Power | 18.7 hp
13.9 kW |
Rated RPM | 2650 |
Starter | electric |
Starter volts | 12 |

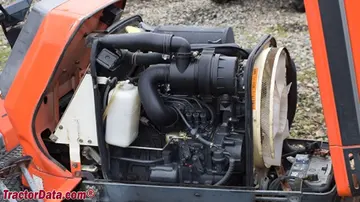

Kubota A-195 Engine | |
|---|---|
 | |
Image courtesy of Agro Engineering |
Transmission
Transmission — 6 forward and 2 reverse
Gears | 6 forward and 2 reverse |
 | |
Dimensions
Kubota A-195 Tires | |
|---|---|
Standard tires (ag) | Front: 6-12. Rear: 8.3-20 |
Dimensions | |
|---|---|
Wheelbase | 53.2 inches
135 cm |
Length | 99.8 inches
253 cm |
Width | 41.3 inches
104 cm |
Height | 72.8 inches
184 cm |
Weight | 1532 lbs
694 kg |
Ground clearance | 12.2 inches
30 cm |
Front tread | 32.3 inches
82 cm |
Rear tread | 31.9/35.4 inches
81/89 cm |
Photos
Kubota A-195
Kubota A-195
Kubota A-195
Kubota A-195
Kubota A-195
Kubota A-195 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota A-195 based on its 18.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota A-195.
Estimated Continuous Field Runtime: 4.6 hrs
Approximately 4.6 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota A-195 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota A-195.
Converted Equivalents:
