Cub Cadet 1420

The Cub Cadet 1420 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 423 to 708 pounds.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
3 gal 11.4 L
Transmission
infinite forward and reverse
Operating Weight
708 lbs*Weight with mower deck. 321 kg

Overview

Cub Cadet 1420 tractor photo
1991 - 1998 Lawn tractor
Production
Manufacturer
Cub Cadet (a part of MTD)
Lawn tractor
Variants
1415
gear
1420
hydrostatic
Cub Cadet 1420 Engine
14HP Kohler 691cc 2-cyl gasoline
Fuel tank
3 gal 11.4 L
Engine details ...
Cub Cadet 1420 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Dry disc brakes
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Mid PTO Type
pulley
Dimensions & Tires
Wheelbase
45 inches 114 cm
Weight
423 to 708 pounds
Front tire
15x6-8
Rear tire
20x10-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
15
Battery volts
12
References
1420 references literature
Owners's Manual Lawn Tractors 1415 - 1420 published by Cub Cadet*
Lawn Tractors & Riding Mowers published in 1989, by Cub Cadet
The Rugged Cub Cadet Lawn Tractor published in 1991
1991 Product Line published by Cub Cadet
Service Manual Lawn Tractors (772-3870) published in 1990
*Publication contains known errors.

Engine

Engine Detail — 691 cc / 42.18 ci Gasoline

Manufacturer
Kohler MV14S
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft
Displacement
691 cc 42.18 ci
Bore/Stroke
3.12x2.75 inches 79 x 70 mm
Power (gross)
14 hp 10.4 kW
Compression
5.8:1
Idle RPM
1800-3400
Starter
electric
Starter volts
12
Sparkplug gap
0.025 inches 0.635 mm

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse
1420 belt-driven hydrostatic speeds

Dimensions

Cub Cadet 1420 Tires
Lawn/turf front
15x6-8
Lawn/turf rear
20x10-8
Dimensions
Wheelbase
45 inches 114 cm
Length
68.5 inches 173 cm
Height (steering wheel)
40 inches 101 cm
Shipping weight
423 lbs 191 kg
Operating weight
708 lbs*Weight with mower deck. 321 kg

Attachments

Attachment overview
38" mid-mount mower deck
46" mid-mount mower deck
Snowblower
Blade

Photos

Cub Cadet 1420, left side.

Cub Cadet 1420, left side.

Cub Cadet 1420, right side.

Cub Cadet 1420, right side.

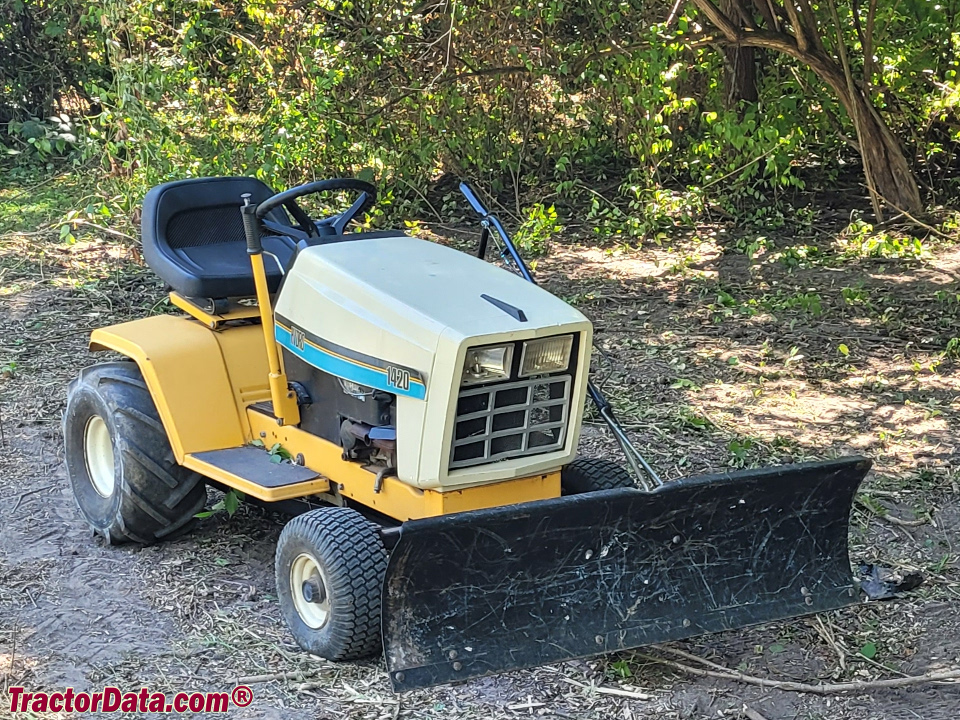

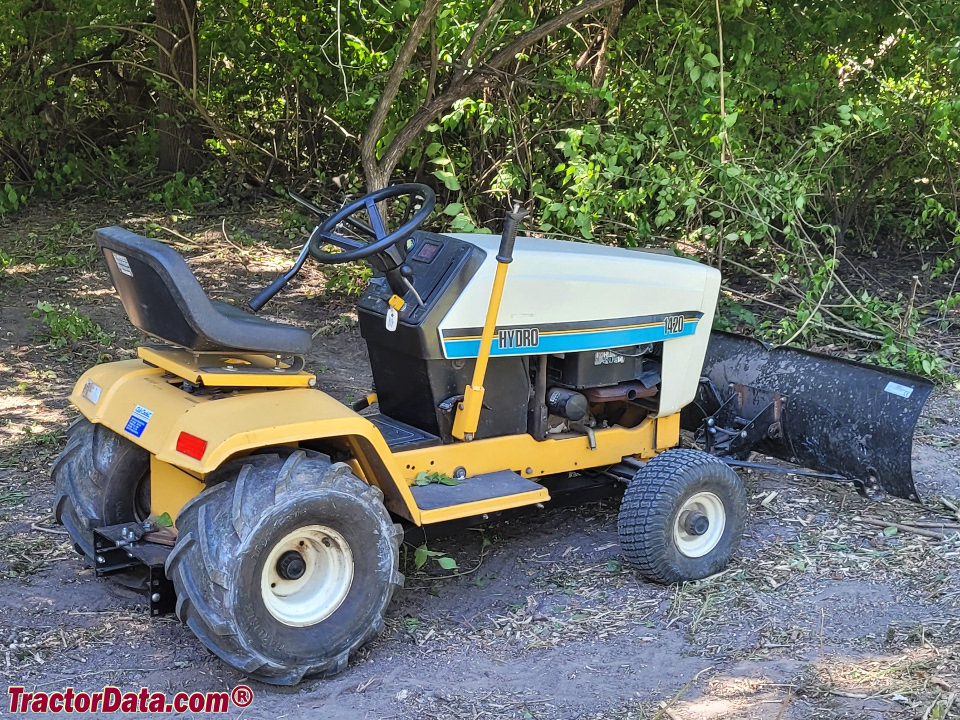

Cub Cadet 1420 with front blade.

Cub Cadet 1420 with front blade.

Cub Cadet 1420 with front blade.

Cub Cadet 1420 with front blade.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 1420.

Estimated Continuous Field Runtime: 4.1 hrs

Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet 1420 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 1420.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
