Cub Cadet 1204

The Cub Cadet 1204 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: 4 forward and 1 reverse.

Overview

	1987 - 1988 Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor

Variants
1204	gear-drive
1210	hydrostatic
1211	hydro with hydraulic lift

Cub Cadet 1204 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Cub Cadet 1204 Transmission
4-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Dual disk brakes
Open operator station.

Dimensions & Tires
Wheelbase	44 inches 111 cm
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery volts	12

References
Garden Tractors published in 1987, by Cub Cadet
Cub Cadet Garden Tractors published in 1988

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer	Kohler
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	476 cc 29.07 ci
Bore/Stroke	3.38x3.25 inches 86 x 83 mm
Power (gross)	12 hp 8.9 kW
Idle RPM	1800-3600
Starter	electric
Starter volts	12
Sparkplug gap	0.025 inches 0.635 mm
Intake valve clearance	0.009 inches (cold) 0.229 mm
Exhaust valve clearance	0.018 inches (cold) 0.457 mm
Oil capacity	2 qts 1.9 L

Transmission

Transmission — 4 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	4 forward and 1 reverse
Clutch	spring-loaded dry disc
Oil capacity	2 qts 1.9 L

Dimensions

Cub Cadet 1204 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	44 inches 111 cm
Length	72 inches 182 cm
Width	37.75 inches 95 cm
Height (steering wheel)	43 inches 109 cm
Ground clearance	6 inches 15 cm
Front tread	29 inches 73 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

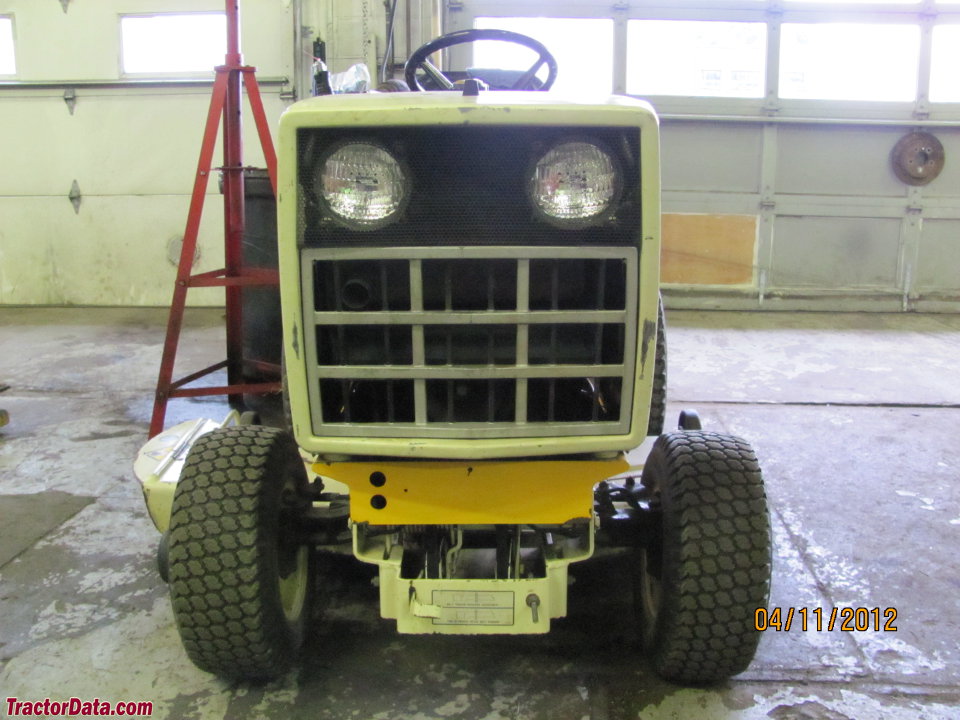

Cub Cadet 1204

Cub Cadet 1204

Cub Cadet 1204

Cub Cadet 1204
